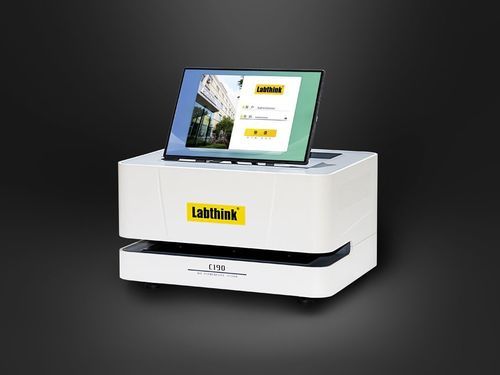

Air flow testing system C190H

gas permeabilitypermeabilitycompressed air

The C190H Air Permeability Tester is a laboratory instrument that applies the volume method to measure gas permeability of battery diaphragms, breathable membranes, related polymer materials, cigarette paper and various papers. It provides fully-automatic, high-precision measurement with flexible three-cell testing and intelligent control for reliable, repeatable results.

Product Features

• Volume Method, Fully-automatic & Highly Precise: gas volume passing through the specimen is fully automatically determined (replaces manual sliding-cylinder measurement); pressure control accuracy better than 0.01 kPa; test pressure can be set freely via software.
• Three-cell Design, Flexible & Efficient: three independent testing cells allow testing of three specimens in a single run; selectable three-cell independent test or three-cell joint test; fast test mode reduces total test time for three cells to approximately 1 minute.
• Automatic Specimen Clamping, Safe & Labor-saving: pneumatic specimen clamping provides consistent clamping force and improved sealing; anti-pinch design for safer operation.
• Intelligent Control, Convenient & Reliable: 12-inch Windows tablet supplied for convenient control; embedded Labthink industrial computer to reduce system failures and ensure data storage security; core sensor and pneumatic control from well-known manufacturers for long service life and low failure rate; automatic detection and recording of test temperature and humidity; supports multi-unit display (e.g., s/100 mL and μm/(Pa·s)); optional software functions include multi-level authority management and audit tracking.

Test Principle
In the test temperature, humidity and atmospheric pressure, the instrument measures the time required for 100 mL of air to pass through a diaphragm with an area of 6.45 cm2 under a pressure of 1.21 kPa.

Reference Standards

• ISO 5636
• TAPPI T460
• GB/T 36363-2018
• GB/T 458-2008
• GB/T 23227
• GB/T 12655

Applications

• Basic Applications: testing gas permeability of battery diaphragms, breathable membranes and related polymer products.
• Extended Applications (customized): testing gas permeability of cigarette paper and various other papers.

Caractéristiques / Spécifications techniques

• Test scope: s/100 mL = 30–1500; μm/(Pa·s) = 0.1–4.
• Volume resolution: 0.001 mL; volume accuracy: 1%.
• Pressure range: 0–2 kPa; pressure accuracy: 0.01 kPa.
• No. of test cells: 3 sets.
• Specimen size: ≥ 2” × 2” (6 cm × 6 cm).
• Specimen thickness: ≤ 120 mil (3 mm).
• Test area: 1” (6.4 cm2) (instrument measures 100 mL through area ~6.45 cm2 under specified pressure in principle).
• Gas specifications: dry air (user-provided air source); compressed air inlet: Φ6 mm polyurethane pipe (pressure recommended 87 PSI / 600 kPa).
• Interface size: Φ6 mm polyurethane pipe.
• Dimensions: 23.6” H × 19.6” W × 27.5” D (25 cm × 44 cm × 35 cm) (as listed).
• Power: 120 VAC ±10% 60 Hz or 220 VAC ±10% 50 Hz.
• Net weight: 24 kg.
• Extended functions (optional): DataShield™ (optional), GMP computer system requirements (optional), CFR21 Part11 (optional).
• Standard configuration: instrument mainframe, tablet, professional software, Φ6 mm polyurethane pipe.
• Optional parts: air compressor, CFR21 Part11, GMP computer system requirements, DataShield™.
