Overview

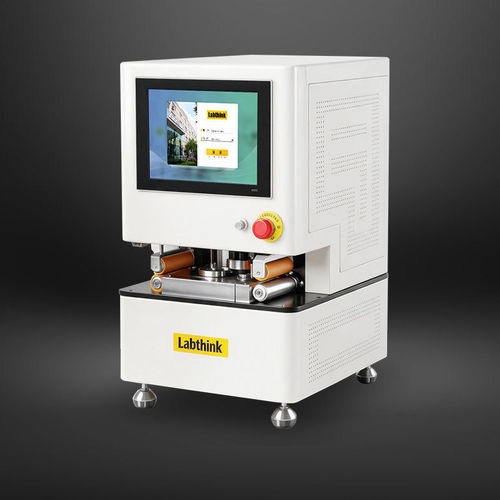

The C910H Air Permeability, Puncture and Thickness Test System applies a volumetric method for gas permeability and mechanical principles for puncture strength and thickness measurement. It is designed for laboratory measurement of air permeability, puncture strength and thickness of battery separators and related polymer films.

Product Features

• Fully Automatic High-Precision Air Volume Determination Method
  • Automatic measurement of the air volume passing through the sample, replacing manual sliding-cylinder methods.
  • Automatic pressure control with pressure accuracy better than 0.01 kPa.
  • Test pressure configurable via software.
• Contact-type Thickness Measurement
  • Cemented carbide spherical measuring head for high wear resistance.
  • Sliding durability > 100 million cycles.
  • Sensor with photoelectric transmissive linear grating scale.
• Mechanical Puncture Strength Measurement
  • Force accuracy better than Grade 0.5 with high repeatability.
  • Servo drive, precision ball screw, stepless speed adjustment and high-precision speed control.
  • Pneumatic sample clamping for consistent clamping force and reduced handling time.
• Integrated Measurement with Automatic Sample Feeding
  • Combined detection of air permeability, puncture strength and thickness to improve throughput.
  • Automatic scanning function for sample identification and recording.
  • Dual-positioning design reduces sample feeding deviation.
• Intelligent Control & Reliable Performance
  • 12.1-inch embedded touchscreen tablet computer running Windows.
  • Key components (sensors, servos, pneumatic parts) from recognized international suppliers.
  • Automatic ambient temperature and humidity monitoring with real-time recording.
  • Air permeability display supports multiple units (e.g. s/100 mL, μm/(Pa·s)).
  • Software supports multi-level permission management and audit trail (optional).

Test Principle
Air permeability is measured under controlled temperature, humidity and atmospheric pressure. The test records the time for 100 mL of air to pass through a 6.45 cm² area of the separator sample under an applied pressure of 1.21 kPa.

Reference Standards
ISO 5636; TAPPI T460; GB/T 36363-2018; GB/T 458-2008; GB/T 23227; GB/T 12655

Test Application (Basic Applications)
Air Permeability — Suitable for battery separators, breathable films and related polymer materials.
Thickness — Suitable for thickness measurement of battery separators and related materials.
Puncture Strength — Suitable for puncture strength testing of battery separators and related materials.

Technical Parameters (key items)

• Model: C910H
• Air permeability range (s/100 mL): 30–1500; (μm/(Pa·s)): 0.1–4
• Volume resolution: 0.001 mL; volume precision: 1%
• Pressure range: 0–2 kPa; pressure precision: 0.01 kPa
• Thickness measuring range: 0–2 mm; resolution: 0.1 μm; repeatability: 0.5 μm
• Puncture strength range: 0.1–50 N; resolution: 0.001 N; force precision: ±0.5% (reading)
• Test speed: 0–500 mm/min; speed accuracy: ±0.5%
• Measuring interval: 0–600 mm; sample feeding speed: 0–50 mm/s

Technical Specifications (selected)

• Test cell: 1 set
• Sample size: 4 in × 40 in (10 cm × 100 cm)
• Sample thickness: ≤ 80 mil (2 mm)
• Measuring area: 1 in² (6.4 cm²)
• Thickness measuring head: spherical Φ3 mm; head pressure < 0.8 N
• Puncture fixture inner diameter: Φ50 mm; puncture needle diameter: Φ1 mm
• Air source: dry air (user-supplied); air source pressure: 72.5–101.5 PSI / 0.5–0.7 MPa; port: Φ6 mm polyurethane hose
• Dimensions: 29.9 in H × 17.7 in W × 21.7 in D (76 × 45 × 55 cm)
• Power supply: 120 VAC ±10%, 60 Hz or 220 VAC ±10%, 50 Hz
• Net weight: 187 lbs (85 kg)

Standard Configuration & Options

• Standard: Main unit, embedded tablet computer, professional software, Φ6 mm polyurethane hose.
• Optional: Air compressor; CFR 21 Part 11; GMP computer system requirements; DataShield™ data protection (optional).

Notes
All parameters measured in Labthink laboratory by professional operators under required conditions. Labthink reserves the right to modify specifications and appearance without prior notice.

Characteristics / technical specifications

• Model: C910H
• Integrated tests: volumetric air permeability, mechanical puncture strength, contact thickness
• Key ranges and resolutions as listed above
• Interface: 12.1" embedded touchscreen with Windows; professional software; optional GMP/CFR21/DataShield™ features
