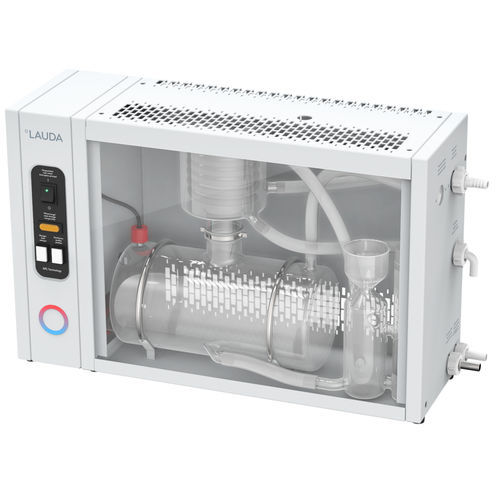

Laboratory water distiller Puridest PD 4 G

automaticsimplebenchtop

Product overview
The Puridest PD 4 G is a fully automatic glass water still for single distillation, suitable for bench or wall mounting. It delivers up to 4 L/h of ultra‑pure water (conductivity stage 1 / 25 °C: 2.2 µS/cm) and does not require specialist commissioning or complex maintenance. Distillation starts at the push of a button and the process remains visible via a removable, non‑fogging front screen.

Key features

• Glass water still for single distillation, fully automatic, bench or wall mounting
• Condensers equipped with dribble guard and steam sterilisation
• Energy‑efficient: reuses heated cooling water for distillation
• CO2 degassing via condenser outlet
• Electronic impurity detector enabling automatic evaporator rinsing and water change
• Distillate outlet via hose connection on the right side
• Automatic water cut‑off to avoid unnecessary water consumption
• Continuous electronic level control with automatic power shut‑off in case of water shortage
• Quartz‑sheathed heating elements
• Evaporators, condensers and overflows made of DURAN® / borosilicate glass 3.3
• Solenoid valve for controlled water supply
• Visible distillation process thanks to easily removable, unbreakable front screen
• Robust housing in galvanised sheet steel, powder coated

Technical data

• Conductivity (stage 1 / 25 °C): 2.2 µS/cm
• Production output: 4 L/h
• Heater power max.: 3 kW
• Max. power consumption: 3 kW
• Cooling water flow rate: 1.2 L/min
• Cooling water pressure difference min.: 3 bar
• Maximum cooling water pressure: 7 bar
• Dimensions (WxDxH): 650 x 200 x 390 mm
• Weight: 16 kg
• Ambient temperature range: 10 ... 40 °C
• Power supply: 230 V; 50/60 Hz
• Power plug: Power cord with angled plug (CEE7/7)
