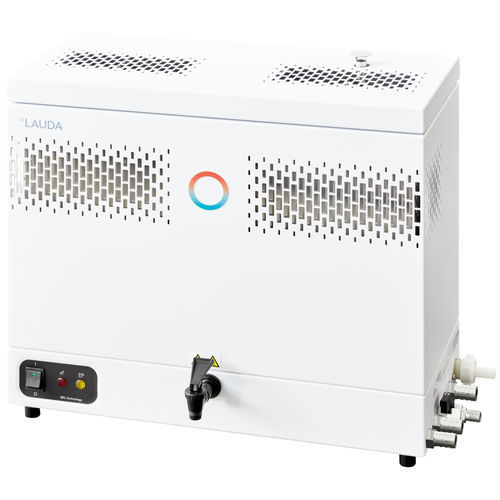

Laboratory water distiller Puridest PD 8 R

automaticsimplecompact

Product overview
Puridest PD 8 R is a fully automatic single-distillation water still delivering 8 L/h of distillate. Compact unit for bench or wall mounting with a 16 L storage tank and integrated condenser; designed for straightforward commissioning and low maintenance.

Key features

• Fully automatic single-distillation still with storage tank, suitable for bench and wall mounting
• Condenser (cooling coil) located inside the storage tank; easily replaceable
• Automatic cooling water cut-off to reduce unnecessary water consumption
• Electronic contamination monitoring with automatic distillation stop and visual cleaning instruction
• Heating element, evaporator, storage tank and condenser made of stainless steel
• Storage tank accepts twice the hourly production capacity
• Solenoid valve for controlled water supply
• Evaporator easily accessible for cleaning
• Automatic refill of storage tank after distillate removal, controlled by electronic level detection
• Housing made of galvanised sheet steel, powder coated; double-walled design
• Distillate withdrawal via drain cock with continuous and touch positions
• Energy-efficient use of heated cooling water and CO2 degassing via condenser outlet
• Thermostatic low-water cut-off

Technical data

• Conductivity (stage 1 / 25 °C): 2.3 µS/cm
• Production output: 8 L/h
• Tank volume: 16 L
• Heater power (max): 6 kW
• Max. power consumption: 6 kW
• Cooling water flow rate: 1.2 L/min
• Cooling water pressure: min. 3 bar / max. 7 bar
• Dimensions (WxDxH): 780 x 410 x 540 mm
• Weight: 34 kg
• Ambient temperature range: 10–40 °C
• Power supply: 400 V; 3/N/PE; 50/60 Hz
• Power plug: IEC 60309, 5-pin, CEE, red, 16 A

Accessories (examples)

• Dechlorination filter
• Spare filling set
• Phosphate cartridge

Ordering / specifications

• Part no.: L003015
• Materials: heating element, evaporator, storage tank, condenser — stainless steel; housing — galvanised sheet steel, powder coated
