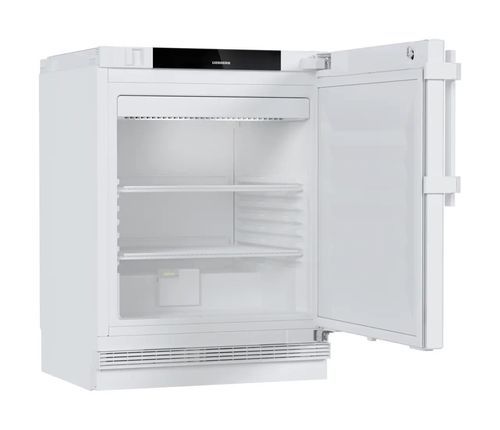

Laboratory refrigerator SRUvg 1001 Performance

safetybuilt-inwith forced air cooling

Overview The SRUvg 1001 Performance is an underbench laboratory refrigerator for professional and scientific use. Designed for installation under worktops with front ventilation and extraction, it supports storage of temperature-sensitive goods with an adjustable range from +3 °C to +16 °C and a net volume of 81 L. It meets safety standard IEC 61010-2-011 and provides temperature stability within ±3 °C.

Key specifications

• External dimensions (H / W / D): 81.9 / 59.7 / 58.4 cm
• Total gross volume: 120 L
• Total net volume: 81 L
• Adjustable temperature range: +3 °C to +16 °C
• Energy consumption (24 h): 0.252 kWh / 24 h
• Energy consumption (annual): 92 kWh/a
• Noise level: 39 dB
• Refrigerant: R 600a
• Rated power consumption: 80.0 W

Features

• 15-year spare parts availability: Parts for functional and storable components available for at least 15 years after production end.
• Accurate 1-point calibration: Electronic 1-point calibration adjustable in 0.1 K steps to correct displayed vs actual internal temperature.
• Alarm relay and alarm test: Configurable alarm forwarding (selection, duration, reminders) and alarm test without interrupting cooling.
• Clear appliance information: Serial/service number and model designation shown on the display for service access without emptying the interior.
• Intuitive control: Flush-mounted control panel in the door with symbols, voice control (multi-language), three touch buttons or Touch & Swipe operation (glove-capable).
• SafetyDevice +2 °C: Automatic function that stabilises temperature and triggers alarm if internal temperature falls below +2 °C (for setpoints ≥ +5 °C).
• IEC 61010-2-011 compliant: Meets mechanical and electrical safety requirements for storage of temperature-sensitive products.
• Cleanroom compatibility: Scientific-line units tested for cleanroom use (ISO class 4 indicated).
• Retrofittable connectivity: WiFi/LAN SmartModule available for SmartMonitoring and external integration.
• Practical/accessory features: Interchangeable door hinge, replaceable door seal, freestanding kit option, height-adjustable feet (adapts to recess heights approx. 82–88 cm), grid shelves with pull-out stop, LED ceiling lighting, mechanical lock (two keys).

Reliability & maintenance

• Minimal routine maintenance: units designed without regularly serviceable filters.
• Long-term availability of spare parts supports lifecycle management.
• Tool-free replaceable door seal and user-changeable hinge reduce service time.

Design & hygiene

• Monobloc white polystyrene interior for easy cleaning and recyclability.
• Antimicrobial handle option to reduce bacterial load.
• LED ceiling lighting for uniform interior illumination.

Options & accessories

• Freestanding installation kit for non-built-in use.
• Retrofit SmartModule (WiFi/LAN) for remote monitoring and documentation.
• External sensor conduit for cable pass-through without breaching seals.
• Mechanical lock with two keys, adjustable feet, interchangeable hinge and spare door seals.

Additional information Touch control with menu levels for users and service technicians (password protected). Demo mode available for training and exhibition use. Min./max temperature recording, alarm functions and SmartMonitoring support available.

Technical specifications

• Model type: Laboratory refrigerator with fan-assisted cooling
• Classification: Performance
• GTIN / EAN: 9005382255018
• Distribution item no.: 994788151
• External dimensions (H / W / D): 81.9 / 59.7 / 58.4 cm
• External dimensions with packaging (H / W / D): 890.0 / 615.0 / 710.0 mm
• Total gross volume: 120 L
• Total net volume: 81 L
• Adjustable temperature range: +3 °C to +16 °C
• Maximum temperature fluctuation: 3.0 °C
• Gradient: 3.9 °C
• Energy consumption (24 h): 0.252 kWh / 24 h
• Energy consumption per year: 92 kWh/a
• Rated power consumption: 80.0 W
• Voltage: 220–240 V ~
• Frequency: 50/60 Hz
• Refrigerant: R 600a
• Heat emission: 90 kJ / h
• Noise level: 39 dB
• Weight without packaging: 35.30 kg
• Weight with packaging: 38.50 kg
• Load-bearing capacity of shelves: 45 kg
• Net shelf width: 45 cm
• Net shelf depth: 40.8 cm
• Number of storage shelves: 3 (2 adjustable)
• Defrosting method: automatic
• Interior light: LED ceiling lighting
• Cleanroom class: ISO class 4
• Certifications: IEC 60068-3 / IEC 61010-1 / IEC 61010-2-011 / IEC 61326-1
• Maximum installation altitude: 2,000 m
