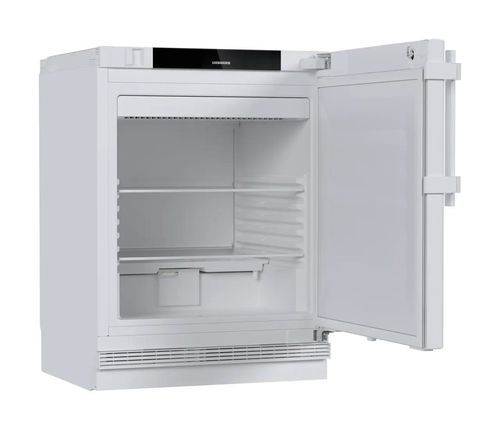

Laboratory refrigerator SRUfg 1001 Performance

uprightexplosion-proofwith forced air cooling

Overview
Under‑counter laboratory refrigerator with ATEX‑95 certification, suitable for furniture integration thanks to front air intake and exhaust. Provides reliable storage with temperature stability of ±3 °C. Optional WiFi/LAN interface available.

Main features

• Laboratory refrigerator with forced‑air cooling and ignition‑free interior (ATEX compliant).
• Front air intake and exhaust — suitable for under‑counter/niche installation.
• Temperature stability: ±3 °C (temperature targeting and control functions).
• Adjustable temperature range: +3 °C to +16 °C.
• Gross volume: 120 L; Net volume: 80 L.
• Retrofitable WiFi/LAN interface (SmartModule / SmartMonitoring compatible).

Special functions / Equipment details

• ATEX conformity: interior classified for safe handling of flammable substances in closed containers (EN/IEC 60079‑0 / EN/IEC 60079‑7 / EU Directive 2014/34/EU).
• Precise 1‑point calibration (adjustment in 0.1 K increments) for accurate temperature control.
• Alarm relay and alarm‑test function: visual/acoustic with configurable forwarding; alarm tests without interrupting cooling.
• Clear device information on the display: serial/service number and model designation easily readable.
• Intuitive menu via flush control panel; operable with gloves using touch buttons (multilingual up to 12 languages).
• Demo mode for function simulation without active cooling (training / exhibitions).
• Cleanroom compatible: tested to DIN EN ISO 14644 (ISO class 4) — reduces need for additional customer risk assessment for cleanroom use.
• Antimicrobial handle with opening mechanism (reduces bacteria, per ISO 22196:2011).
• Reversible door hinge and plug‑in, replaceable door seal for easy service and flexible placement.
• Seamless, easy‑to‑clean polystyrene inner container; robust glass shelves (partially adjustable) — hygienic design.
• Height‑adjustable feet to adapt niche height (approx. 82–88 cm over four feet).
• Almost maintenance‑free: no regularly replaceable filters or maintenance‑intensive parts.

Application notes

• Designed for long service life; spare parts available for 15 years.
• SafetyDevice: on fault (setpoint ≥ +5 °C) the protection function intervenes, stabilises temperature and triggers an alarm (freeze protection).
• Can be integrated into furniture niches without rear or top ventilation openings thanks to engineered air guidance.

Technical specifications

• Product group: Laboratory refrigerator with forced‑air cooling and ignition‑free interior
• Classification: Performance
• GTIN / EAN: 9005382260197
• Sales article number: 994821351
• Total gross volume: 120 L
• Total net volume: 80 L
• External dimensions (H/W/D): 81.9 / 59.7 / 58.4 cm
• Packaging dimensions (H/W/D): 890.0 / 615.0 / 710.0 mm
• Weight (without packaging): 37.10 kg
• Weight (with packaging): 40.30 kg
• Energy consumption per year: 92 kWh/a
• Energy consumption per 24 h: 0.252 kWh / 24 h
• Measurement methodology energy consumption: Empty measurement +5 °C / ambient +25 °C
• Sound power level: 39 dB
• Refrigerant: R 600a
• Heat emission: 90 kJ / h
• Rated input: 80.0 W
• Voltage: 220–240 V ~
• Frequency: 50/60 Hz
• Maximum fluctuation: 2.8 °C
• Gradient: 3.9 °C
• Adjustable temperature range: +3 °C to +16 °C
• Number of shelves: 3 (2 adjustable)
• Shelf load capacity (cooling area): 40 kg
• Usable shelf width: 45 cm
• Usable shelf depth: 40.8 cm
• Certifications / Standards: EN IEC 60079‑7 / IEC 60068‑3 / IEC 61010‑1 / IEC 61010‑2‑011 / IEC 61326‑1
• Cleanroom class (ISO EN 14644‑1): ISO class 4
• Maximum installation altitude: 2,000 m above sea level
• Fuse protection: 10–16 A
• Power cord (length): 3,000 mm
