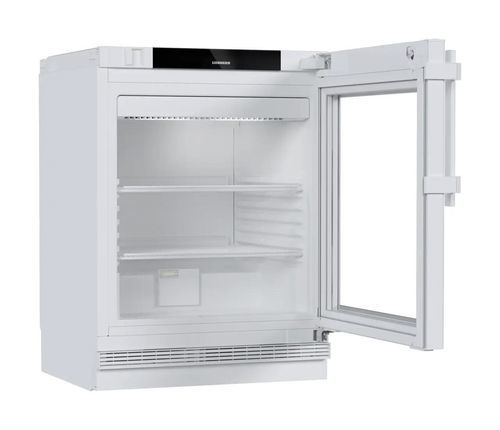

Laboratory refrigerator SRUvg 1011 Performance

built-inwith forced air coolingmanual defrost

Overview
The fully integrated under‑bench laboratory refrigerator designed for medical and scientific use. Front ventilation enables flexible undercounter installation in fitted furniture. Complies with IEC 61010-2-011 and provides stable storage conditions (temperature stability approx. ±3 °C).

Key product attributes

• Model: SRUvg 1011 Performance
• Product dimensions (H/W/D): 81.9 / 59.7 / 58.4 cm
• Adjustable temperature range: +3 °C to +16 °C
• Total gross volume: 123 L; total net volume: 81 L
• Energy consumption per year: 182 kWh/a (0.497 kWh/24h)
• Noise level: 39 dB
• Refrigerant: R 600a
• Classification: Performance; GTIN/EAN: 9005382255032

Features

• 15-year spare parts availability for functional and storable parts
• Accurate 1-point calibration (adjustable in 0.1 K steps)
• Configurable alarm relay and alarm test without interrupting cooling
• Hidden customer menu and technician menu with code protection
• Cleanroom compatibility (tested to DIN EN ISO 14644; ISO class 6)
• Antimicrobial handle and LED interior lighting; LightAlarm for uncontrolled temperature rise or open door
• Interchangeable door hinge and replaceable door seal (user-replaceable)
• Feedthrough for external sensors; retrofit SmartModule (WiFi/LAN) for SmartMonitoring
• Freestanding kit and height-adjustable feet for flexible installation
• Manual defrost start, interval timer for maintenance, mechanical lock with two keys
• Easy-to-clean seamless polystyrene interior and grid shelf with pull-out stop

Technical specifications

• Cooling: fan-assisted / dynamic (under-bench integration via front ventilation)
• Number of shelves: 3 (2 adjustable); shelf load capacity: 45 kg
• Rated power consumption: 80.0 W; voltage/frequency: 220-240 V ~ / 50/60 Hz
• Weight: 42.40 kg (without packaging); packed dimensions H/W/D: 890 / 615 / 710 mm
• Temperature display: external digital; temperature stability / max fluctuation: max 2.2 °C; stability approx. ±3 °C
• SmartMonitoring-enabled (SmartModule, retrofit WLAN/LAN interface)
• Certifications: IEC 60068-3 / IEC 61010-1 / IEC 61010-2-011 / IEC 61326-1
• Maximum installation altitude: 1,500 m; connector cable length: 3,000 mm
