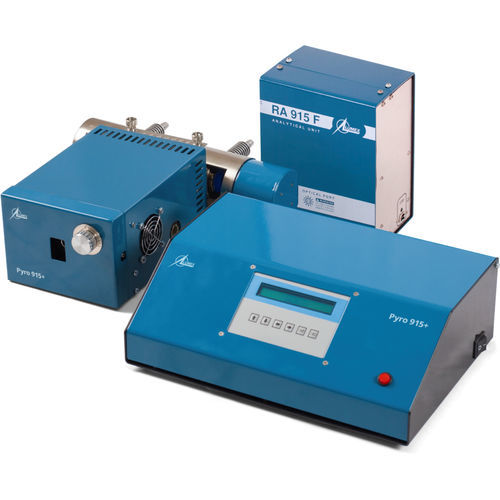

Control analyzer RA-915F

temperaturecalibrationmercury

tomic absorption spectrometry at 254 nm with Zeeman correction for background absorption for interference-free measurement. APPLICATIONS Direct determination of the mercury concentration in solid and liquid samples, such as: foodstuff and biological materials; crude oil and naphtha; coal, fly ash, gypsum; USEPA 30B, PS12B and CEN/TS 17286 sorbent traps; passive air samplers; waste waters and sludge; soils and sediments. PRINCIPLE OF OPERATION Direct thermal decomposition of a sample and subsequent measuring the absorption of the 254-nm resonance radiation by mercury atoms using Zeeman correction for background absorption. FEATURES AND BENEFITS Direct mercury determination in samples with complex matrices Highest selectivity No pre-treatment procedures required Broad dynamic measurement range: > 5 orders of magnitude Automated temperature adjustment control for dynamic range enlargement No memory effect Thermoscanning option Visualization of mercury output from the sample, user-friendly computer interface High calibration stability No carrier gas is needed DELIVERY SET RA-915F Zeeman mercury analyzer comes with RAPID software, interface cables, user manual. WARRANTY RA-915F Zeeman mercury analyzer is covered by 12-months limited warranty. Technical specifications Detection limit - 0.5–3 μg/kg Ladles volume - 1.2 / 2.5 mL Upper limit of the measurement range of concentration for a 20 mg sample - 2000 mg/kg Analysis time - 1–5 min Power supply - 110–242 VAC, 50/60 Hz MEASUREMENT UNIT Dimensions (LxWxH) - 175x110x235 mm Weight - 4.0 kg
