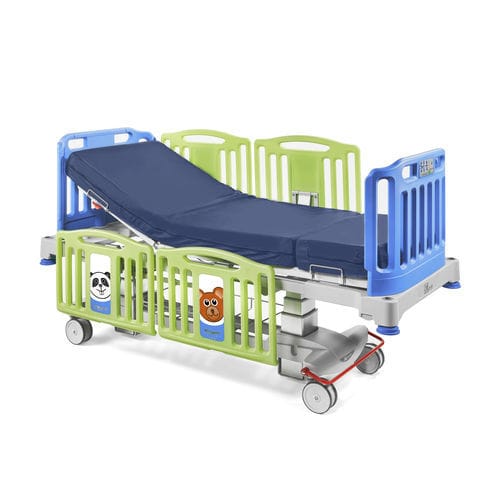

Electric bed, pediatric, adjustable height on two columns, with trend, reverse trend, and electrically operated bed lengthener from cm 158 to cm 195.
Pediatric bed, electric, 3 sections, height adjustable on two motorised vertical columns.
Lower base in tubular steel with epoxy-powder coating, completely free of obstructions, with four twin wheels diam. 150 mm, central brake.
Thermoformed ABS mattress platform wit h fixed HPL covering over the sliding footrest.
In the closed/standard position, the mattress platform has a length of cm 158 and can be electrically lengthened till cm 195 so that the bed can be used also by tall children.
The bed ends are made of mass coloured plastic material. The head side bed end can be removed, with a lever lock/unlock device, while the foot side bed end is fixed, as it integrates a control panel (electric cabling concealed inside the bed end) with the following electric functions:
- safety switch ON and OFF button, with led indicating the type of power source, e ither power net or battery, once the panel is in ON mode; Equipped with battery let signally the charging status, both when running on power net or on battery.
- height adjustment, with led indicated minimum height reached (arrow-low)
- backrest adjustment;
- mattress platform length adjustment;
- Trendelenburg and reverse Trendelenburg adjustment;
- l ed calling for programmed maintenance or indicating an electric anomaly;
When the control panel remains unused for a few minutes the control box goes automatically into auto switch-off mode to cut down power
consumption. The system is activated again by pressing the switch-ON push-button.
