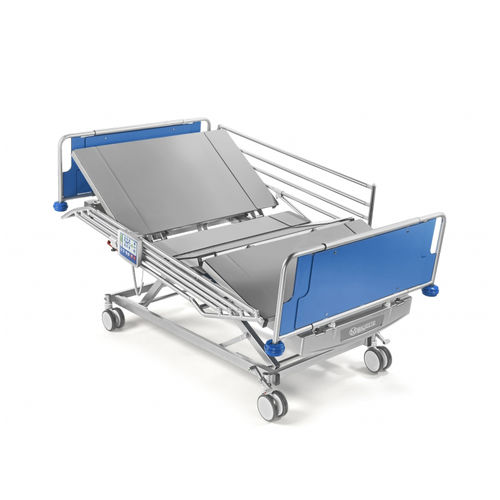

Hospital bed Botero 347400
medicalelectricbariatric

hospital bed
hospital bed
hospital bed
hospital bed
hospital bed
Add to favorites
Compare this product


Characteristics

Applications
hospital, medical
Operation
electric
Patient type
bariatric
Features
height-adjustable, tilting, Trendelenburg, verticalization
Component
on casters, with locking wheels, with weighing scale
Options
washable
Number of sections
4-section
Height

Max.: 8,500 cm (279 in)

Min.: 38 cm (15 in)

Width

Max.: 113 cm (44.5 in)

Min.: 102 cm (40.2 in)

Length

Max.: 226 cm (89 in)

Min.: 200 cm (78.7 in)

Weight capacity

Min.: 400 kg (881.8 lb)

Description

Electric bed, 4-section, 3 of which jointed and 1 fixed centrally. HPL Mattress platform adjustable at two widths, 102 cm and 122 cm. Electrically operated backrest and kneebreak adjustments. Mattress platform with integrated pull-out bed lengthener for a total extension length of 180mm. Equipped with I.V. pole and lifting pole housings. Height adjustment for a safe lifting load capacity of 400kg. Bed equipped with a push-button handset for the patient and with a control handset (SUPERVISOR)for the operator. Trendelenburg and reverse-Trendelenburg. Backrest with 11cm roto-translation.(CPR) quick release lever available on both sides of the bed. Width-adjustable bed ends, according to the configuration of the mattress platform. Folding side rails providing a 40cm containment above the mattress platform. Bed equipped with 150mm twin wheels, featuring a centralised braking system with directional wheel. Epoxy powders coating finish, with BioCote antibacterial additive. Technical data: Overall dimensions: cm 226x113 Mattress platform min dim: cm 200x102 Mattress platform dim with max bed- extension: cm 218x122 Mattress platform height: min. cm 38, max cm 85 Trendelenburg/Reverse-trend: +17°/- 17° Safe lifting and working load: 400 kg. Degree of protection: IPX5 Standard Electrical Characteristics: Line voltage: 230 V +/- 10 % 50/60 HZ transformed into 24 V; SCHUKO plug Different voltages and plugs are available according to the standards of the country of destination. Maximum absorbed power: 370 VA Isolation class: I - TYPE: B MEDICAL DEVICE, CLASS I, IN COMPLIANCE WITH THE EU DIRECTIVE 93/42/CEE, MODIFIED BY THE DIRECTIVE 2007/47/CE.
