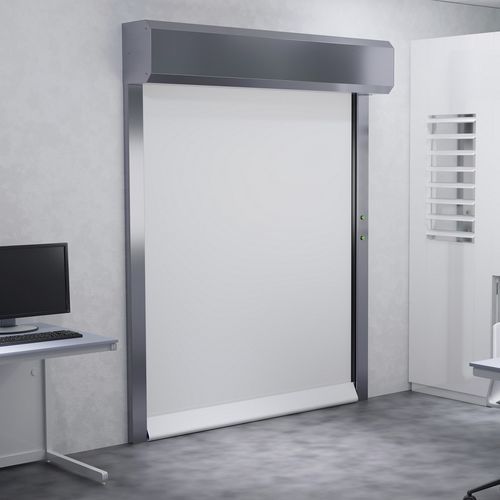

Insulation door

air-tightfor clean roomslaboratory

Product overview
At Manusa, we develop solutions to ensure safe, controlled working environments. This high-speed roll-up door has been designed for laboratories and cleanrooms to meet demanding standards of air tightness, cleanliness and operational reliability. It integrates unobtrusively into controlled environments while maximising functionality. Certified Air Permeability Class 5, it also delivers improved thermal and acoustic insulation. Equipped with safety sensors and multiple protective mechanisms, the door ensures secure and dependable operation. Door canvases can be customised with iconography, images, logos or signage to client requirements.

Key features

• High air tightness: Air Permeability Class 5 (UNE-EN H12426:2000)
• High-speed roll-up operation to minimise air exchange
• Improved thermal and acoustic insulation
• Integrated motor and electronics in the head for a compact installation
• Designed for indoor use with vertical opening
• Safety systems: presence sensors and multiple safety mechanisms
• Customisable door canvases (iconography, images, logos or signage)

Optional equipment

• Double height stop selector
• Pull cord
• Remote control
• External push button
• Presence and movement sensor
• Loop detector
• Photocell barrier
• UPS (uninterruptible power supply)

Available colours

• RAL 9005
• RAL 8014
• RAL 7016
• RAL 7037
• RAL 7038
• RAL 5010
• RAL 5005
• RAL 5002
• RAL 6026
• RAL 3002
• RAL 2004
• RAL 1003
• RAL 1014
• RAL 9016

Peepholes / Vision panels

• Shapes: square and rectangular
• Position: horizontal or vertical
• Quantity: multiple peephole options available
• Vision options: clear vision and UV-filtered vision panels

Technical specifications

• Overall dimensions example (illustrative): 4200 x 4350 (width x height)
• Opening direction: vertical
• Intended use: indoor
• Air permeability: Class 5 according to UNE-EN H12426:2000
• Motor and electronics integrated in the head for compact installation
