Air-tight door

roll-upaluminumPVC-coated

Product overview

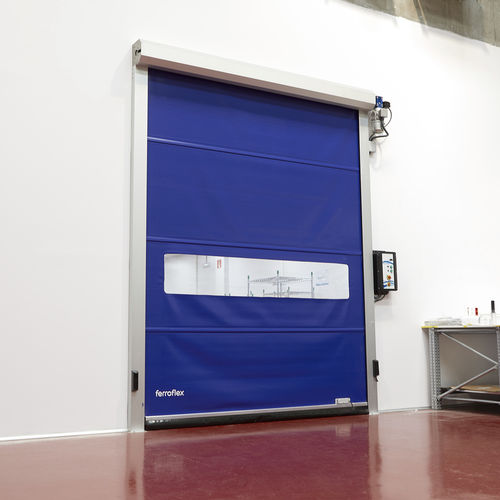

The high-speed reinforced aluminium roll-up door is designed to improve air tightness and deliver a refined finish. The anodised aluminium structure offers a professional appearance suited to sectors where hygiene and image matter, such as food processing. The product provides clean lines, integrated safety functions and multiple configuration options to meet project requirements.

Applications

• Indoor and outdoor separation of production, storage and logistics areas.
• Suitable for food industry, warehouses, manufacturing lines and distribution centres where airtightness and finishing are important.
• Controls access while allowing vehicle and forklift transit.

Design and operation features

• Anodised aluminium frame for aesthetic finish and corrosion resistance.
• PVC curtain (0.9 mm) with high abrasion and corrosion resistance; curtain construction and reinforcements vary by model.
• Integrated safety: obstacle detection with automatic reverse/raise and manual override for power loss.
• Standard control: internal and external push-buttons for drive operation.

Optional equipment

• Motor position: lateral or frontal; right or left configuration.
• Frame lacquered in custom RAL colour.
• Motor cover and protection options.
• Opening system options: UPS, remote control, radar detectors, presence/motion sensors, etc.
• Control cabinet with frequency converter for speed regulation.
• Opening speed adjustable up to 2.0 m/s depending on dimensions.
• Custom coloured or silk-screened curtain.

Viewing panels and ventilation options

• Transparent PVC windows of various sizes can be integrated depending on model.
• Mosquito-net type panels available where ventilation is required.

Peepholes (optional)

• Available shapes: square and rectangular.
• Installation options: horizontal or vertical positions.
• Multiple peepholes can be fitted according to project needs.

Frequently asked points

• Is this door a security/anti-intrusion door? No — as a PVC curtain door it is intended for compartmentalisation, environmental control and regulated access, not as an anti-intrusion security door.
• What is the curtain material? PVC curtain, approx. 0.9 mm thick, with high abrasion and corrosion resistance; final composition and reinforcements depend on the chosen model.

Technical specifications

• Maximum dimensions: 4000 × 4000 mm
• Use: indoor and outdoor
• Wind resistance: Class 2
• Structure: anodised aluminium (optionally lacquered RAL)
• Curtain material: PVC 0.9 mm (abrasion- and corrosion-resistant)
• Opening speed: standard 0.8 m/s; adjustable up to 2.0 m/s (optional, depending on dimensions)
• Safety: obstacle detection with automatic response and manual raise option for power failure
• Standard control: internal and external push-button; optional automation systems available
