High-speed door

air-tightfoldingstainless steel

Overview

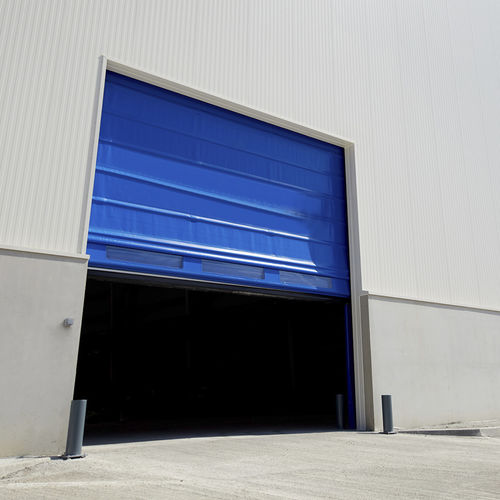

Designed for intensive use in large outdoor openings, this high-speed fold-up door provides airtight compartmentalisation and controlled access between zones. Reinforcing crossbars on the fabric protect interiors from adverse weather and the modular configuration allows adaptation to project requirements.

Key features

• For large outdoor and indoor openings with intensive cycles
• High resistance to draughts; wind resistance Class 2 (up to 6000 x 6000 mm)
• Airtight design enabling compartmentalisation and climate control
• Reinforcing crossbars on fabric for improved durability in adverse conditions
• Multiple configuration and customisation options

Optional equipment

• Motor position: lateral or frontal; right or left configuration
• Structure in 304 stainless steel (option)
• Motor cover option
• Silk-screen printing on fabric
• Adjustable opening speed: up to 1.5 / 1.0 m/s depending on dimensions
• Opening controls: UPS (battery backup), remote control, radar sensors and other detectors
• Coloured or silk-screened custom fabric

Colors

• RAL 9005
• RAL 8014
• RAL 7016
• RAL 7037
• RAL 7038
• RAL 5010
• RAL 5005
• RAL 5002
• RAL 6026
• RAL 3002
• RAL 2004
• RAL 1003
• RAL 1014
• RAL 9016

Peepholes

• Shapes: square or rectangular
• Positions: horizontal or vertical
• Quantity: single or multiple peepholes per configuration

Frequently Asked Questions

• Q: What documentation and certifications does the door include?
  A: In accordance with EN13241, documentation includes user manual, declaration of performance, CE marking and maintenance book. Documents available in multiple languages.
• Q: How is the fold-up door constructed?
  A: The door has two side stiles that act as guides for the flexible fabric. The fabric folds upward and stacks at the top, lifted by straps to the top guide where winding pulleys and a drum driven by a gear motor raise and lower the door.
• Q: What safety systems are provided?
  A: Safety photocell on the guide reverses movement on obstacle detection. The lower fabric edge includes a safety band that reverses motion on contact. A photocell barrier can be used as an alternative safety solution.

Technical specifications

• Maximum dimensions: 7000 x 7000 mm
• Intended use: indoor and outdoor
• Wind resistance: Class 2 (up to 6000 x 6000 mm)
• Structure: lacquered steel in RAL colour (option: 304 stainless steel)
• Opening speed: standard fixed 0.8 / 0.8 m/s; optional adjustable up to 1.5 / 1.0 m/s depending on dimensions
• Fabric: tear and tensile resistance compliant with applicable standards
• Safety: obstacle detection with automatic reversal; manual raising option for power loss
• Standard controls: internal and external push-button; multiple control options available
