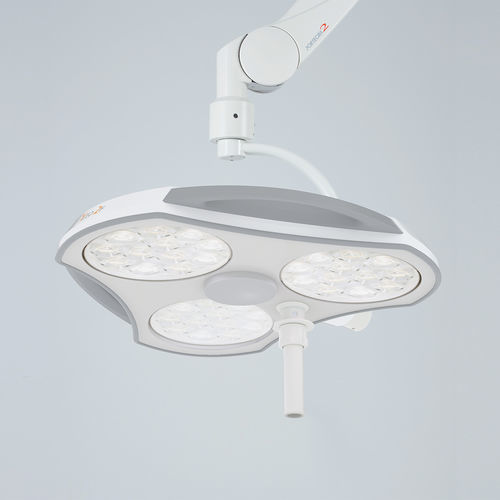

Ceiling-mounted surgical light YLED-2F

LEDfor operating roomswith video camera

Product overview
Optimum illumination of the surgical field is achieved with 36 high-performance LED modules delivering up to 130,000 lx at 1 m. The YLED-2F combines homogeneous light distribution, a faceted lens system for minimal shadowing and high Ra/R9 values for realistic colour rendering. Partial cardanic suspension and an asymmetrical, sterilizable handle provide ergonomic positioning for clinical workflows. Standard camera preparation and an electrified Portegra®2 suspension arm enable integration of imaging systems.

Key features

• User-friendly control panel
• 5-step light intensity control (including 5% Endo mode)
• Electronic focusing with adjustment ring
• Sterilizable handle with ergonomic position
• Optimized for laminar flow
• Free 360° rotation
• Standard camera preparation (camera optional)
• Includes electrified Portegra®2 suspension arm (extension arm 750 mm / 950 mm) and external power supply
• High Ra and enhanced R9 for accurate tissue colour rendering

Technical Data and Specifications
Model: YLED-2F
Central light intensity (at 1 m): 130,000 lx
LED modules: 36
Focusable light field (at 1 m): 18–23 cm
Electronic brightness control: 28–100% (including 5% endoscopy function)
Temperature increase in head area: 0.5 K
Power consumption (standard): 30 VA / 36 LEDs (100–240 VAC, 50–60 Hz)
Power consumption with HD camera: ≤ 55 W
Light source life: ≥ 60,000 h
Height adjustment on Portegra®2 spring arm: 117 cm
Weight incl. handle: 8.6 kg ( +1 kg with camera option )
Protection class: IP42
Regulatory: Medical device — in accordance with (EU) 2017/745 MDR / CE, NRTL
