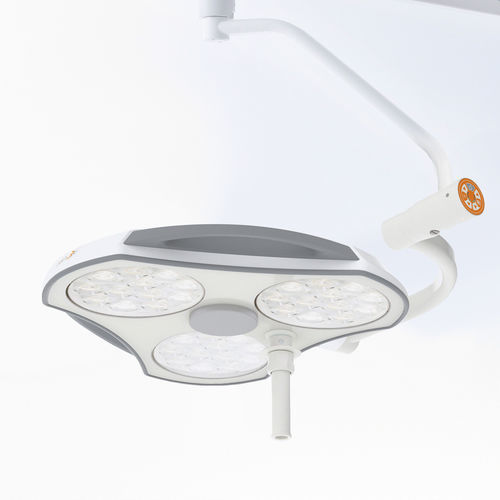

Ceiling-mounted surgical light YLED-3F

LEDfor operating rooms96

Product overview
The YLED-3F is a fully cardanic surgical light with integrated endoscopy function. Thirty-six high-performance LEDs deliver a central illuminance of 160,000 lx to support precise visualization. The unit features electronic focusing, five-level dimming including a 5% endoscopy mode, and an ergonomically positioned sterilizable handle for intraoperative adjustment. Delivery includes an electrified pre-set Portegra®2 suspension arm (extension arm 750 mm / 950 mm or spring arm for HCA systems) and an external power supply unit.

Features

• Free 360° rotation
• User-friendly control panel
• 5-level dimming with 5% endoscopy setting
• Electronic focusing (focusable field 18–23 cm at 1 m)
• Streamlined laminar-flow design
• Sterilizable handle with focus adjustment
• Standard camera preparation (camera optional)

Technical data
Model: YLED-3F
Central light intensity (1 m): 160,000 lx
Color rendering index Ra / R9 (4500 K): 96
Focusable field (1 m): 18–23 cm
Electronic brightness control: 28–100% (including 5% endoscopy function)
Temperature increase in head area: 0.5 K
Low power consumption / number of LEDs: 35 VA / 36 LEDs (max. 55 VA incl. camera); mains 100–240 VAC, 50–60 Hz
Power consumption (with HD camera system): max. 55 W
LED lifetime: ≥ 60,000 h
Height adjustment (Portegra®2 spring arm): 117 cm
Weight: 11.5 kg (plus 1 kg with camera option)
Protection class: IP42
Regulatory: Medical device — MDR (EU) 2017/745 / CE, NRTL

Maximum mobility meets modern design
The fully cardanic suspension provides flexible positioning and precise shadow management. High color rendering values ensure accurate tissue color differentiation while a faceted lens system promotes uniform light distribution. The sterilizable handle supports hygienic intraoperative handling.

Specifications

• Model: YLED-3F
• Central intensity: 160,000 lx
• CRI Ra / R9 (4500 K): 96
• Focusable field: 18–23 cm (at 1 m)
• Brightness control: 28–100% (incl. 5% endoscopy)
• Temperature increase head area: 0.5 K
• Power consumption: 35 VA (36 LEDs) — max. 55 VA incl. camera
• Power with HD camera: 55 W max
• LED lifetime: ≥ 60,000 h
• Height adjustment (Portegra®2 spring arm): 117 cm
• Weight: 11.5 kg (+1 kg with camera)
• Protection class: IP42
• Regulatory: MDR / CE, NRTL
