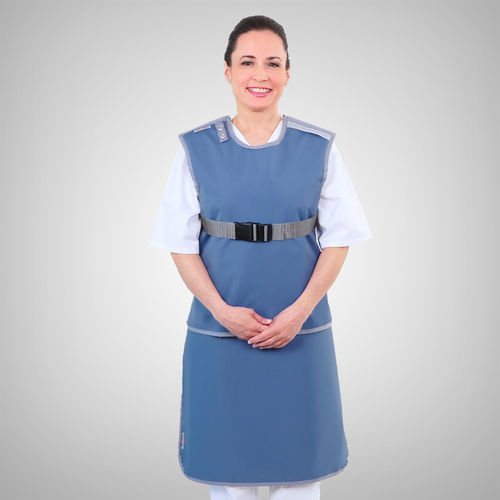

Rear protection X-ray protective apron TWIECE RA645

front protection0.25 mm0.50 mm

Short description
The two-piece front protective apron RA645 provides effective radiation protection with optimized weight distribution between shoulders and hips for use in X‑ray imaging.

Key features

• Split design (vest + skirt) for balanced weight distribution
• Comfortable fit suitable for short and prolonged wear
• Shoulder pads to reduce strain
• Front-closing straps with snap-buckle fasteners on vest and skirt
• PFC-free outer material certified to Oeko‑Tex® Standard 100
• Phthalate-free protective components; recyclable lead content

Two-piece concept — Intended use
Designed for conventional X‑ray imaging, the RA645 separates front protection into a vest and skirt to relieve the lumbar region and shoulders while maintaining required attenuation.

Straps & snap buckle
Front straps with snap-buckle fasteners on both vest and skirt allow secure and adjustable closure.

Protective material and lead equivalent
Protective material options: NovaLite® Plus or Leadfree 2.0
Lead equivalent (front): Pb 0.25 mm standard; optional Pb 0.35 mm or Pb 0.50 mm
Lead equivalent (back): Pb 0.25 mm

Compliance and certification
Type testing and certification in accordance with (EU) 2016/425, IEC 61331-1:2014 / DIN EN 61331-1:2016, IEC 61331-3:2014 / DIN EN 61331-3:2016 and (EU) 2017/745. RA models are certified as PPE category III and as class I medical devices.

Now with RFID chip!
All radiation protection garments include an RFID chip sewn into the label for traceability and inventory management.

Sizes
Sizes: XS – 3XL
XS: Chest girth ≤ 84 cm; Waist/hip girth ≤ 91 cm
S: Chest girth approx. 85 – 95 cm; Waist/hip girth approx. 92 – 102 cm
M: Chest girth approx. 96 – 106 cm; Waist/hip girth approx. 103 – 112 cm
L: Chest girth approx. 107 – 117 cm; Waist/hip girth approx. 113 – 123 cm
XL: Chest girth approx. 118 – 128 cm; Waist/hip girth approx. 124 – 134 cm
XXL: Chest girth approx. 129 – 139 cm; Waist/hip girth approx. 135 – 145 cm
3XL: Chest girth approx. 140 – 150 cm; Waist/hip girth approx. 146 – 156 cm

Skirt lengths
65 cm for approx. 150 – 170 cm height
70 cm for approx. 170 – 180 cm height
75 cm for approx. 180 – 190 cm height
80 cm for approx. 190 – 200 cm height

Technical specifications

• Brand: MAVIG
• Model: RA645
• Concept: Two-piece (vest + skirt) for optimal weight distribution
• Protective materials: NovaLite® Plus (optional), Leadfree 2.0 (optional)
• Lead equivalent (front): Pb 0.25 mm standard; optional Pb 0.35 mm or Pb 0.50 mm
• Lead equivalent (back): Pb 0.25 mm
• Closure: Snap-buckle fasteners on vest and skirt (front-closing straps)
• Comfort: Shoulder pads; suitable for short and long periods of use
• Outer material: PFC-free, Oeko‑Tex® Standard 100
• Materials: Phthalate-free protective components with recyclable lead content
• RFID: RFID chip sewn into the label
• Standards / Certification: (EU) 2016/425; IEC 61331-1:2014 / DIN EN 61331-1:2016; IEC 61331-3:2014 / DIN EN 61331-3:2016; (EU) 2017/745 (class I medical device); PPE category III
• Available sizes: XS, S, M, L, XL, XXL, 3XL
• Skirt lengths available: 65, 70, 75, 80 cm
• Colour options: multiple (example shown: Regatta)
