Bone grafting instrument kit KHS

dental implant surgerydental surgerysinus lift

Product overview
The KHS system is designed to provide a self-tapping bone screw that removes the need for pre-drilling in bone densities D2 to D4. The specially shaped head reduces local pressure on soft tissues and lowers the risk of perforation. KHS screws are available in lengths from 5 mm to 15 mm and in diameters 1.35 mm and 1.60 mm. Head height is approximately 0.5 mm; the underside of the head is flat while upper surfaces are rounded to minimize soft-tissue compression. The insertion tool uses a compact square drive connection to further reduce pressure on surrounding soft tissues.

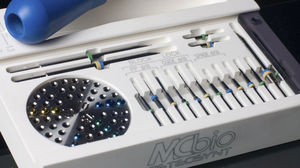

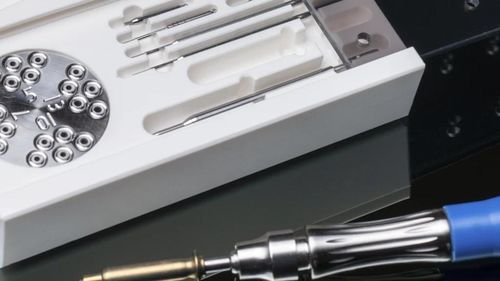

Surgical set composition

• Medical-grade polymer box, sterilizable in Class B steam autoclaves
• Integrated organizer within the surgical box
• Stops for screw retention
• Hand driver with long and short tips
• Special anti-fracture cutters for angled and axial motors; shapes and sizes adaptable to surgical technique

Clinical information
Pre-drilling is not necessary for bone densities D2 to D4; for D1 bone pre-drilling is recommended. The KHS tip features a prismatic design that enables precise placement and effective cutting/drilling. KHS screws allow rapid insertion and are intended for single use. MC Bio applies an eco-conscious approach across its range: most products are reusable and recyclable, except for single-use items such as nails and screws.

Indications / Techniques

• Mesh fixation — preferably using 5 mm and 7 mm screws
• Membrane fixation — preferably using 5 mm screws
• Bone plate fixation — preferably using 5 mm and 7 mm screws
• Bone block fixation — preferably using screws from 7 mm to 13 mm
• Shell technique — preferably using 10 mm to 15 mm screws
• Tenting technique — preferably using screws from 7 mm to 13 mm

Material
KHS screws are produced in TIGR5 certified ASTM F136.

Characteristics / technical specifications

• Model: KHS
• Lengths available: 5 mm to 15 mm
• Diameters available: 1.35 mm and 1.60 mm
• Head height: approximately 0.5 mm
• Underhead: flat surface for precise, low-pressure contact; geometry provides extended support
• Upper surfaces: rounded to minimize pressure on soft tissues
• Drive connection: compact square drive
• Tip: prismatic, designed for precise placement and effective drilling
• Material: TIGR5 certified ASTM F136
• Surgical set components: medical-grade polymer sterilizable box; integrated organizer; stops for screw retention; hand driver (long and short tips); special anti-fracture cutters for angled and axial motors
• Intended use: single-use screws
