Bone grafting instrument kit G-Fix

dental implant surgerydental surgerysinus lift

Product overview
System specifically designed for mesh fixation using 1.35 mm diameter titanium screws. It enables screw insertion with a minimal number of surgical instruments, reducing initial acquisition costs. The system is compatible with Osteosynt, Osteo Studio Line and B-Block instruments and equipment, offering a complete and versatile solution for bone graft and mesh procedures.

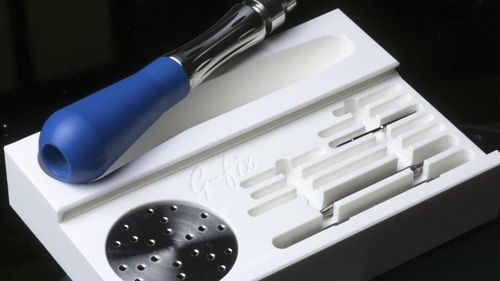

Surgical set composition

• Medical-grade polymer box, sterilizable in Class B steam autoclaves
• Integrated organizer within the surgical box
• Insertion bits
• Manual driver with interchangeable tips
• Special anti-fracture cutters for angled and axial motors (shapes and sizes adaptable to surgical technique)

Product features

• Designed for mesh fixation with 1.35 mm titanium screws
• Screws supplied non-sterile to allow sterilization of the required quantity
• Materials selected for biocompatibility, durability and resistance to mechanical stress
• Round-head screws with an almost flat underside for quick and precise seating
• Square-drive head for improved insertion directionality
• Compatible with multiple instrument lines: Osteosynt, Osteo Studio Line, B-Block, Specialist, Bone Activation Drills
• Minimizes the number of required instruments to lower initial setup costs

Frequently asked points (summary)

• Main distinguishing feature: nearly flat screw underhead
• Square-drive connection enhances directionality during insertion
• Included drills prepare the receiving bone and, if used carefully, can harvest bone for grafting

Technical specifications

• Application: mesh fixation for autologous bone blocks
• Screw diameter and material: 1.35 mm titanium screws
• Screw condition: supplied non-sterile
• Screw geometry: round head with flat underside; square-drive head
• Packaging: medical-grade polymer sterilizable box (Class B steam autoclaves); integrated organizer
• Set contents: insertion bits; manual driver with interchangeable tips; special anti-fracture cutters for angled and axial motors
• Compatibility: Osteosynt; Osteo Studio Line; B-Block; Specialist; Bone Activation Drills
• Materials: selected for biocompatibility, durability and mechanical resistance
