Bone grafting instrument kit Osteo Studio Line

dental implant surgerydental surgeryautoclavable

Overview
The Osteo Studio Line provides a cost-effective solution for fixation of bone blocks in the maxilla and mandible. Screws are manufactured from surgical-grade titanium alloy Ti Gr5 (ASTM F136) and feature a dual option for support head size. The line is fully compatible with the Osteosynt line. Screws are supplied non-sterile to permit on-site sterilization of required quantities.

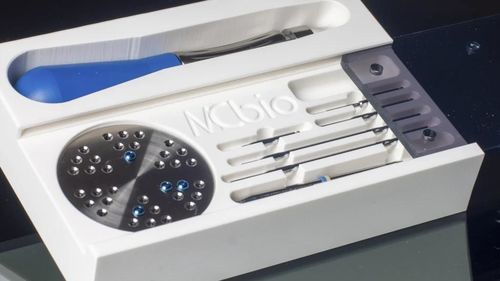

Surgical set composition

• Medical-grade polymer box, sterilizable in Class B steam autoclaves
• Integrated organizer for components
• Motor-driven screwdrivers
• Manual driver with long tip
• Anti-fracture drills for contra-angle and axial motors in shapes and sizes for various surgical techniques

Clinical cases
Access to clinical cases and supporting documentation is restricted to authorized or registered users on the website.

Product highlights

• Screws supplied non-sterile to allow on-site sterilization of only the quantity required
• Non-anodized screws; biocompatibility ensured by titanium's natural oxide layer
• Intended for fixation of cortical, cortico-cancellous and cancellous bone blocks
• Selected non-toxic, durable materials engineered to withstand surgical stresses
• Entry-level set positioned as a cost-effective alternative to the complete Osteosynt kit

Compatible lines

• Specialist
• Osteosynt
• B-Block
• G-Fix
• Bone Activation Drills

Technical specifications

• Material: Titanium alloy Ti Gr5 (ASTM F136)
• Sterility: Screws supplied non-sterile
• Head: Dual option for support head size
• Anodization: Non-anodized
• Box: Medical-grade polymer, sterilizable in Class B steam autoclaves
• Included instruments: Motor-driven screwdrivers; manual driver with long tip
• Drills: Anti-fracture drills for contra-angle and axial motors; shapes and sizes for different techniques
• Intended use: Fixation of bone blocks in the maxilla and mandible
• Compatibility: Compatible with Osteosynt line
• Design: Entry-level, cost-effective solution
• Biocompatibility: Natural oxide layer on titanium ensures biocompatibility
• Sterilization: On-site sterilization of non-sterile screws recommended according to provided guidelines
