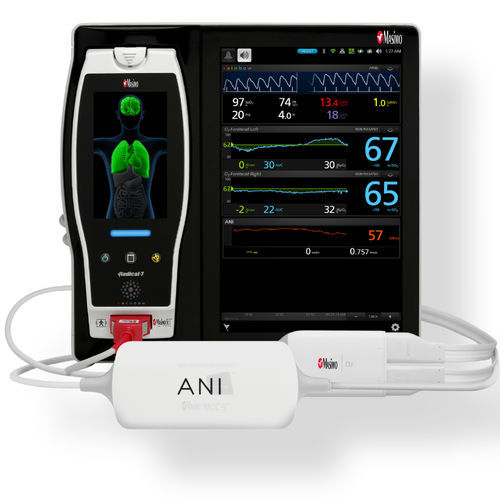

ANI module for patient monitor ANI MOC-9 V1

analgesiaintensive carefor surgery units

The ANI MOC-9 is an innovative technology providing a measure of the parasympathetic tone to continuously evaluate patient comfort levels. ANI is unique in using sympathovagal the balance between nociception and analgesia. Benefits of ANI technology: Predictivity hemodynamic reactivity Refine opioids titration Predict post-extubation pain Helpful to diagnose the etiology of a hemodynamic event Reduce length of stay in outpatient surgery units ANI Monitoring Root patient monitoring and connectivity hub offers plug and play monitoring with Masimo Open Connect TM(MOC-9TM) modules. Apply sensors on the patient’s chest: • biggest sensor under the right clavicle • smallest sensor on the cardiac apex Connect the ANI Sensor V1 PLUS to an ANI MOC-9 module Connect the ANI MOC-9 module to one of three MOC-9 ports on Root Specifications Power Requirements DC Input 5V 0.4A 2W Battery No battery Patient leakage currents CF type Environmental Cooling Method Convection. Fanless Temperature: Operating Storage 5°C to 40°C -20°C to 60°C Relative Humidity: Operating Storage > 10% and 0% and <95% non-condensing Atmospheric pressure: Operating Storage 800hPa to 1066hPa 800hPa to 1066hPa Dimensions 5.4 (width) x 15.5 (height) x 2.2 (depth)cm Connectors DC Input (monitor) Masimo MOC-9 Connector Patient Connector 7-pin flat connector
