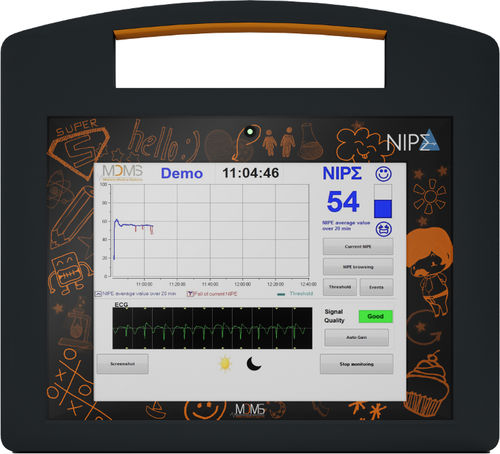

NIPE patient monitor NIPE MONITOR V1

bedsidepainfor critical care

The NIPE technology provides an objective way to assess the nociception/analgesia balance for neonates and young infants, allowing care to be individualized. NIPE offers a continuous assessment of the parasympathetic component of the autonomic nervous system in neonates and young infants. This unique technology is proven to work with extremely premature babies, from around 26 weeks gestation, through to infants up to two years of age. The NIPE is based on the electrocardiogram taken from the patient monitor in use and does not require additional patient sensors. NIPE technology benefits: Evaluation of the newborn parasympathetic activity Evaluation of the newborn autonomic response to prolonged pain Detect nociception Evaluate of the state of comfort/ discomfort of the patient Specifications Output Real Time Export Protocol RS-232 interface Saved Data Export USB interface Power Requirements Main Voltage 100-240 VAC (± 10%) Main Frequency 50/60Hz (± 3) Battery No battery DC Input 12V 3.4A 40W Patient Leakage Current NA Environmental Cooling Method Convection. Fanless Temperature Operating Storage 5°C to 35°C 20°C to 60°C Atmospheric Pressure Operating Storage 800hPa to 1066hPa 800hPa to 1066hPa Relative Humidity Operating Storage > 15% and 15% and <95% non-condensing Dimensions With pole clamp 27 (width) x 24.7 (height) x 16.5 (depth) cm Dimensions Without pole clamp NA Connector DC Input (monitor) Jack DC 2-pin power connector Export (monitor) DE-9 male connector to export data in real time Data Export (Monitor) USB connector to export data and snapshot to USB stick Multi parametric link 4-pin circular connector
