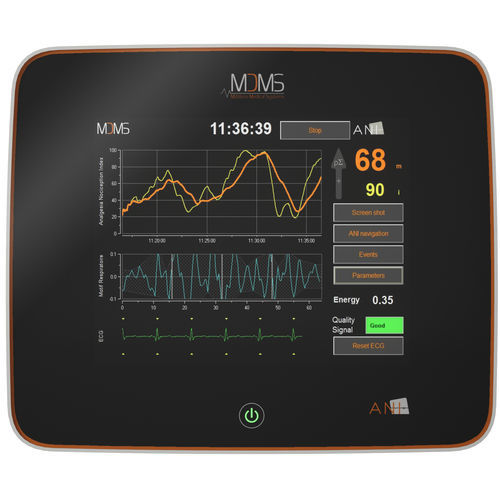

ANI patient monitor ANI MONITOR V2

bedsideECGrespiratory frequency

The Analgesia Nociception Index (ANI technology is a novel, innovative technology providing a measure of the parasympathetic tone to continuously evaluate patient comfort level. ANI allows physicians to titrate analgesics to control nociception. Benefits of ANI technology: Predict hemodynamic reactivity Titrate opioids Predict post-extubation pain Diagnose the etiology of a hemodynamic event Reduce length of stay Specifications General Power Requirements 100-240 VAC through AC power adapter Main Frequency 50/60 Hz Battery Type No battery DC Input 12V 3,4A 40W Patient Leakage Current <5μA @ 220V and 50 Hz Connector DC Input (monitor) 3-pin power connector ECG IN (monitor) 6-pin female connector for sensor cable connection Export (monitor) Sub-D9 connector to export data in real time Data Export (Monitor) USB connector to export data and snapshot to USB stick Sensor cable 6-pin male connector Sensor (Acquisition Device) 5-pin female connector for sensor Output Export Protocol UART interface Data Export USB interface Display Type Color Liquid Crystal Resolution 800 x 600 pixels Active Viewing Area 173 x 130 mm Pixel pitch 0.216 x 0.217 mm Environmental Cooling Method Convection. Fan less Temperature Operating Storage 5°C to 40°C -20°C to 60°C Dimensions Monitor Acquisition Device 256 x 214 x 81 mm Finish Monitor Front : white and orange Back : white
