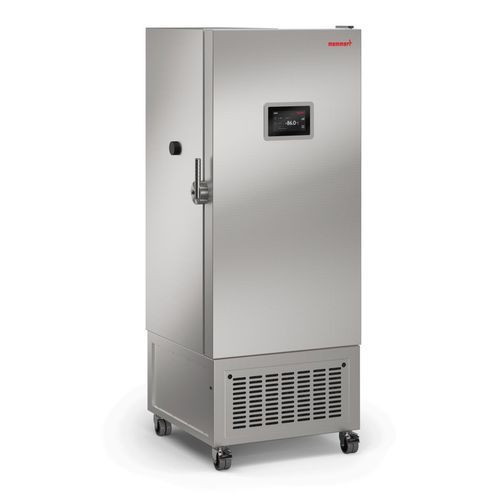

Laboratory freezer ULT240eco

for clinical laboratoriesfor sample storagemobile

Overview
Maximum protection for critical laboratory samples. Secure ultra-low temperature storage offering high thermal stability, integrated safety features and energy-optimised cascade cooling suitable for sample preservation in clinical and research environments.

Range of functions
Adjustable parameter: temperature.
Control unit: 7" touchscreen integrated in the outer door in an ergonomic position for straightforward operation.

Temperature
Setting temperature range: -50 to -86 °C.
Cooling system: Two-stage cascade cooling with inverter compressors for precise temperature control and improved energy efficiency. Refrigerants: first stage R290 / second stage R170. Air-cooled condenser.
Setting accuracy: 0.1 °C.

Communication
Interfaces: Ethernet LAN, USB for data export and remote monitoring integration.

Safety
Power failure: Backup battery for alarm signalling and monitoring during power interruptions.
Temperature monitoring: Pt1000 temperature sensor.
Alarm: visual and acoustic alarms for deviations and access events.

Standard equipment
Standard features: Door-open detection; entry port / pressure relief opening Ø 26 mm, lateral.
Door: Insulated stainless steel outer door(s) with mechanical door lock.
Interior configuration: 4 compartments including 2 stainless steel inner doors and 3 height-adjustable shelves to adapt to different load sizes.

Stainless steel interior
Internal dimensions (w(A) x h(B) x d(C)): 450 x 1111 x 489 mm.
Max. number of 2" / 50 mm boxes: 162.
Volume: 244 l.
Max. chamber load: 280 kg.
Max. load per shelf: 140 kg.

Textured stainless steel casing
External dimensions (w(D) x h(E) x d(F)): 700 x 1832 x 738 mm.
Installation: on lockable castors for positioning and mobility.

Packing / shipping data
Customs tariff number: 8418 40 20.
Country of origin: Netherlands.
Transport information: The appliance must be transported upright.
Dimensions approx. incl. carton (w x h x d): 900 x 2050 x 900 mm.
Net weight: approx. 245 kg.
Gross weight (with carton): approx. 310 kg.

Certifications
Standard units are safety-approved and bear CE marking.

Technical specifications

• Model: ULT240eco
• Brand: Memmert
• Temperature range: -50 to -86 °C
• Setting accuracy: 0.1 °C
• Cooling: Two-stage cascade with inverter compressors (R290 / R170), air-cooled condenser
• Control: 7" touchscreen in outer door
• Interfaces: Ethernet LAN, USB
• Temperature sensor: Pt1000
• Alarms: visual and acoustic; backup battery for power-failure alarm
• Interior volume: 244 l
• Max. number of 2" / 50 mm boxes: 162
• Max. chamber load: 280 kg; max. load per shelf: 140 kg
• Outer door: Insulated stainless steel with mechanical lock
• Standard interior: 4 compartments, 2 inner doors, 3 height-adjustable shelves
• Exterior dimensions (w x h x d): 700 x 1832 x 738 mm
• Interior dimensions (w x h x d): 450 x 1111 x 489 mm
• Net weight: approx. 245 kg; gross weight (with carton): approx. 310 kg
• Transport: upright only
• Country of origin: Netherlands
• Customs tariff number: 8418 40 20
