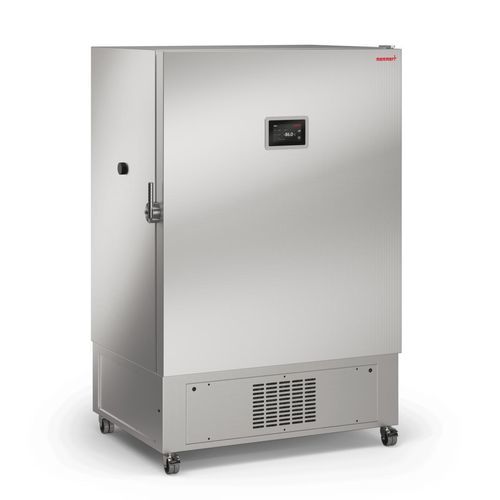

Laboratory freezer ULT1000eco

for sample storageuprighton casters

Product overview
Secure storage for critical biological and research samples at ultra-low temperatures. High thermal stability, integrated safety features and energy-optimised cascade cooling with inverter compressors.

Range of functions
Adjustable parameter: temperature.
Control: 7" touchscreen integrated in the outer door in ergonomic position.

Temperature
Setting range: -50 to -86 °C.
Cooling: Two-stage cascade-connected inverter compressors; refrigerants R290 (1st) / R170 (2nd); air-cooled condenser.
Setting accuracy: 0.1 °C.

Communication
Interfaces: Ethernet LAN, USB.

Safety
Power-failure protection: backup battery for alarm and monitoring during power outage.
Temperature monitoring: Pt1000 sensor.
Alarm: visual and acoustic.

Standard equipment
Door-open detection; lateral entry port / pressure-relief opening Ø 26 mm.
Doors: insulated stainless steel outer doors with mechanical door lock.
Interior: standard configuration with 4 compartments (2 stainless steel inner doors) and 3 height-adjustable shelves.

Stainless steel interior
Internal dimensions (W x H x D): 1035 x 1276 x 732 mm.
Max. number of 2" / 50 mm boxes: 770.
Volume: 966 L.
Max. chamber load: 440 kg; max. load per internal: 220 kg.

Textured stainless steel casing
External dimensions (W x H x D): 1285 x 1992 x 973 mm.
Installation: on lockable castors.

Packing / shipping data
Customs tariff number: 8418 69 00.
Country of origin: Netherlands.
Transport: appliances must be transported upright.
Dimensions incl. carton (W x H x D): 1440 x 2250 x 1080 mm.
Net weight: approx. 425 kg; Gross weight carton: approx. 590 kg.

Certifications
Standard units are safety-approved and bear CE marking.

Technical specifications

• Model: ULT1000eco
• Brand: Memmert
• Application: Ultra-low temperature storage for samples
• Temperature range: -50 to -86 °C
• Temperature setting accuracy: 0.1 °C
• Cooling: Two-stage cascade-connected inverter compressors; refrigerants R290 (1st) / R170 (2nd); air-cooled condenser
• Control: 7" touchscreen integrated in outer door
• Interfaces: Ethernet LAN, USB
• Temperature sensor: Pt1000
• Alarm: Visual and acoustic; backup battery for alarm/monitoring in power failure
• Standard interior: 4 compartments; 2 stainless steel inner doors; 3 height-adjustable shelves
• Internal dimensions (W x H x D): 1035 x 1276 x 732 mm
• Chamber volume: 966 L
• Max. number of 2" / 50 mm boxes: 770
• Max. chamber load: 440 kg; max. load per internal: 220 kg
• External dimensions (W x H x D): 1285 x 1992 x 973 mm
• Installation: on lockable castors
• Entry port / pressure-relief opening: Ø 26 mm, lateral
• Door: insulated stainless steel outer doors with mechanical door lock
• Packing dims incl. carton: 1440 x 2250 x 1080 mm
• Net weight: approx. 425 kg; Gross weight carton: approx. 590 kg
• Customs tariff number: 8418 69 00
• Country of origin: Netherlands
• Certification: CE
