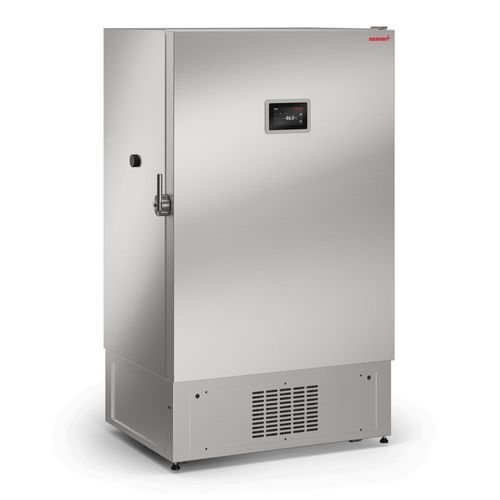

Laboratory freezer ULT750eco

biomedicaluprighton casters

Short description
Maximum protection for critical samples. Secure ultra-low temperature storage for laboratory and biomedical applications with high thermal stability, integrated safety features and energy-optimised cascade cooling.

Range of functions
Adjustable parameters: Temperature
Control unit: 7” touchscreen integrated in the outer door in ergonomic position

Temperature
Setting temperature range: -50 to -86 °C
Cooling system: Two-stage cascade inverter compressors for precise temperature control and high energy efficiency. Refrigerants: 1st stage R290 / 2nd stage R170. Air-cooled condenser.
Setting accuracy temperature: 0.1 °C

Communication
Interface: Ethernet LAN, USB

Safety
Power failure: Backup battery for alarming and monitoring during power failure
Temperature monitoring: Temperature sensor Pt1000
Alarm: Visual and acoustic alarms

Standard equipment
Standard option: Door-open detection; Entry port / pressure relief opening Ø 26 mm, lateral
Door: Insulated stainless steel outer doors with mechanical door lock
Additional accessories: Standard interior configuration with 4 compartments, consisting of 2 stainless steel inner doors and 3 height-adjustable shelves for flexible adaptation to different load sizes.

Stainless steel interior
Dimensions (w(A) x h(B) x d(C)): 890 x 1345 x 627 mm
Max. number of 2" / 50 mm boxes: 576
Volume: 750 l
Max. loading of chamber: 400 kg
Max. loading per internal shelf: 200 kg

Textured stainless steel casing
Dimensions (w(D) x h(E) x d(F)): 1140 x 2000 x 888 mm
Installation: On lockable castors

Packing / shipping data
Country of origin: Netherlands
Transport information: The appliance must be transported upright
Dimensions approx. incl. carton (w x h x d): 1410 x 2220 x 1080 mm
Net weight: approx. 380 kg
Gross weight carton: approx. 550 kg

Certifications
Standard units are safety-approved and bear the CE mark

Technical specifications

• Model: ULT750eco
• Temperature range: -50 to -86 °C
• Temperature setting accuracy: 0.1 °C
• Cooling: Two-stage cascade inverter compressors; refrigerants R290 (1st stage) and R170 (2nd stage); air-cooled condenser
• Control: 7” touchscreen integrated in outer door
• Interfaces: Ethernet LAN, USB
• Temperature sensor: Pt1000
• Alarm: Visual and acoustic; backup battery for alarms during power failure
• Volume: 750 l
• Internal dimensions (w x h x d): 890 x 1345 x 627 mm
• External dimensions (w x h x d): 1140 x 2000 x 888 mm
• Max. number of 2" / 50 mm boxes: 576
• Max. loading chamber / per shelf: 400 kg / 200 kg
• Standard interior: 4 compartments; 2 stainless steel inner doors; 3 height-adjustable shelves
• Door: Insulated stainless steel outer doors with mechanical lock
• Entry port / pressure relief opening: Ø 26 mm, lateral
• Installation: On lockable castors
• Transport: Must be transported upright
• Country of origin: Netherlands
• Net weight: approx. 380 kg; Gross weight carton: approx. 550 kg
• Certification: CE
