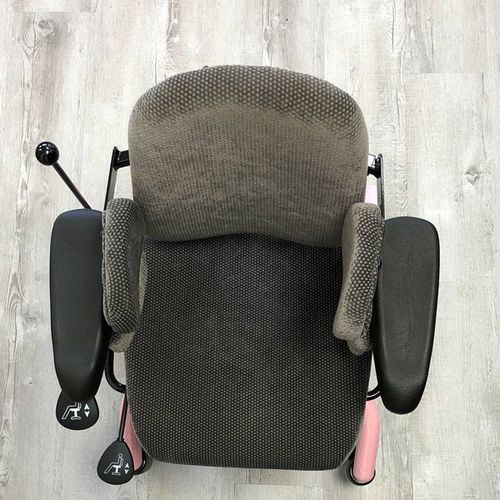

Pediatric chair BEETLE

on casterselectricergonomic

Overview
Underframe for a therapy chair with extra-low seat height, designed for very young children in combination with the REAL 9000 PLUS KIND. Enables active or passive play, learning and participation in therapy. Very low seat height from 18 cm (with wooden school seat or approx. 22 cm with seat cushion) facilitates supported stepping and, together with the large stepping area and easy-rolling castors, provides high mobility. The brake ensures a secure standing position.

Features

• Seat height from 18 cm (with wooden school seat), adjustable seat heights
• Seat height adjustment by gas spring or electrically (various versions)
• Modular system with ergonomic ErgoMedic (PLUS) padding elements and numerous options to adapt to growth and changing needs
• Maximum stepping area and easy-rolling castors for simple supported stepping
• Brake for secure standing

Indications / Applications

• CP (cerebral palsy)
• Gait impairment
• Genetic defects
• Osteogenesis imperfecta (brittle bone disease)
• Hip dysplasia
• Hydrocephalus
• Short stature
• Physical disability / severe disability
• Mobility limitation (in daily life, at school, at work)
• Muscular dystrophy, muscle disease, muscle weakness, muscle wasting
• Problems with sitting posture / sitting position
• Difficulty standing up
• Scoliosis
• Spasms / spasticity
• Care and therapy

Characteristics / Technical specifications

• Maximum user weight: 55 kg*
• Pre-adjustable seat height from 17 cm (measured from the floor to the lower edge of the seat cushion)
• Seat height adjustment by gas spring: approx. 25 - 31 cm (measured from the floor to the lower edge of the seat cushion)
• Seat height adjustment electrically: approx. 28 - 44 cm (measured from the floor to the lower edge of the seat cushion)
• Seat widths: 29, 33, 36 or 40 cm*
• Seat depths: 32, 35, 39 or 43 cm*
• Backrest width: between 25 and 40 cm*
• Backrest height: between 20 and 43 cm* (backrest height adjustable)
• Underframe dimensions: 40 x 44 cm (W x D)
• Modular system allows easy adaptation to growth and changing needs
• *Other sizes and versions on request
