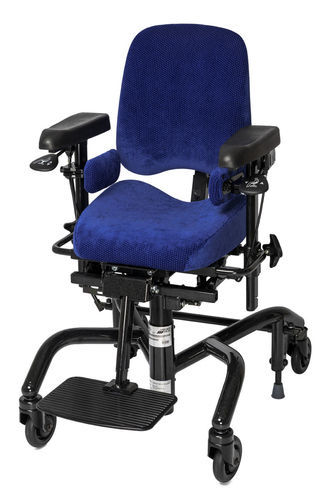

Pediatric chair REAL 9000 PLUS KIND

on castersmobileelectric

Overview
Our pediatric therapy chair REAL 9000 PLUS KIND is a modular therapy chair from Sweden designed for active and passive seating during play, learning, feeding and therapeutic situations. HMV no. 26.11.05.0040.

Applications

• Optimal seating during feeding (supports chewing or swallowing difficulties)
• Promotes active posture and strength during play
• Supports concentration during learning, ideal combined with the SCRIBA table
• Suitable for high motor activity / spasms thanks to a secure parking brake and robust construction

Modular and delivery options
Thanks to a modular system with ErgoMedic (PLUS) cushions and numerous options, individual configurations are possible. Growth adaptation is provided via different bases such as SPIDER, EVI or BEETLE. The chair is available on request with pink, green or blue PLUS base. The base can also serve as a frame for a molded seat shell or bespoke constructions (e.g. custom seat or back cushions).

Options

• Seat height and tilt adjustment by gas spring (standard) or electric (EL version)
• Seat tilt adjustment: various ranges (e.g. +15° forward / -8° backward; other combinations possible)
• Bases: SPIDER, EVI or BEETLE (BEETLE for extra low seat height)
• Parking brake manual (standard) or optional electric (on EL version)
• Optional push handle

Technical specifications

• Hilfsmittel-Verzeichnis number: 26.11.05.0040
• Maximum user weight: 75 kg
• Seat tilt options: +15° forward / -8° backward; adjustable ranges depending on configuration (+15° to -8° / +8° to -15° / 0° to -23°)
• Seat height adjustment by gas spring: 32 - 46 cm or 40 - 60 cm (measured from floor to underside of seat cushion). With seat-tilt mechanism the height increases by 1 cm (standard) or 2 cm (mechanism with 3 adjustment ranges).
• Seat height electric (EL): 37 - 57 cm or 45 - 75 cm (measured from floor to underside of seat cushion). Height increases slightly with the seat-tilt mechanism as described above.
• Seat widths (options): 29, 33, 36 or 40 cm* (other sizes on request)
• Seat depths (options): 32, 35, 39, 43 or 48 cm* (other sizes on request)
• Back cushion width: adjustable between 25 and 46 cm*
• Back cushion height: adjustable between 20 and 43 cm*
• Base — center-to-center frame dimensions: 43 x 53 cm (W x D)
• Overall dimension with standard castors in travel direction: approx. 48 x 63 cm (W x D)
• With manual parking brake lever approx. +6 cm width (electric parking brake optional on EL version)
• Optional: EVI or SPIDER base; BEETLE base for extra low seat height

* other sizes and custom configurations available on request.
