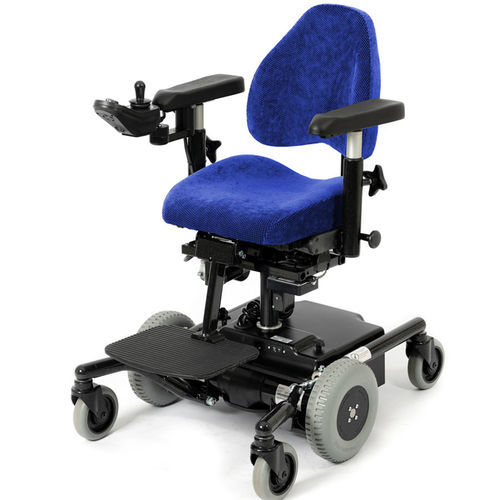

Electric wheelchair REAL 6100 PLUS (EL)

pediatricindoorheight-adjustable

Short description
The REAL 6100 PLUS (EL) is a narrow, highly maneuverable electric indoor wheelchair suitable for children and adults of smaller stature. It provides an ergonomic seating system, simple operation and secure support during transfers. Mid-wheel drive enables zero‑turn maneuvers and makes the chair suitable for tight or narrow spaces. Thresholds up to approximately 3.8 cm can be negotiated.

Product features

• Mid-wheel drive with small turning radius, ideal for confined spaces.
• Optional electric seat height adjustment (facilitates safe transfers to stairlift, bed or toilet; enables reaching high objects and eye-level contact).
• Ergonomic seating system with extensive adjustability for comfort and support.
• Suitable for use at home, in school/daycare and at work.

Seat height variants

• Gas-spring seat height adjustment: 32–46 cm or 40–60 cm (measured from floor to underside of seat cushion). With standard seat tilt mechanism +1 cm; with 3-position seat tilt mechanism +2 cm.
• Electric seat height adjustment (REAL 6100 PLUS EL): 47–75 cm or 37–57 cm (measured from floor to underside of seat cushion). With standard seat tilt mechanism +1 cm; with 3-position seat tilt mechanism +2 cm.

Optional seat angle adjustment

• Seat angle adjustment optionally by gas spring or electric actuator.
• Adjustment ranges: +15° forward / -8° backward; or selectable between +15° and -8° / +8° and -15° / 0° and -23° (depending on version).

Programmable functions (by authorised dealer)

• Forward speed
• Forward acceleration
• Forward braking speed
• Reverse speed
• Reverse acceleration
• Reverse braking speed
• Turning speed
• Turning acceleration
• Turning brake
• Joystick sensitivity
• Reverse joystick control
• Operation with an external joystick

Possible indications / applications

• ALS (amyotrophic lateral sclerosis)
• Amputation
• Arthrodesis / joint fusion
• Osteoarthritis, arthritis
• Gait impairment
• Joint inflammation / joint pain
• Osteogenesis imperfecta
• Short stature
• Physical disability / severe disability
• Mobility limitations in everyday life or at the workplace
• MS (multiple sclerosis)
• Muscular dystrophy, muscle diseases
• Osteoporosis
• Polyarthritis
• Postural problems / seating correction / difficulties rising
• Rheumatism, rheumatoid arthritis, fibromyalgia
• Stroke
• Care and therapy

Note
For further information on suitable conditions and detailed technical data see the “Details” section or the technical specifications below. Additional image and video materials are available.

Technical characteristics / specifications

• Maximum user weight: 135 kg
• Chassis (W x L): 57 x 80 cm
• Front and rear castor diameter: Ø 125 mm
• Drive wheel diameter: Ø 210 mm
• Maximum speed: 4.5 km/h
• Mid-wheel drive 180° turning circle: 870 mm
• Range: approx. 15 km
• Surmountable thresholds: up to 3.8 cm
• Empty weight: 76 kg (including battery)
• Charging time: approx. 6–8 hours
• Battery charger: Mentzer 2.5A or ECB-801 Easy buddy 4A
• Batteries: 2 x FGS 12V 25 Ah (maintenance-free)
• Seat width: 29–48 cm*
• Seat depth: 32–53 cm*
• Backrest width: 27–46 cm*
• Backrest height: 20–43 cm* (adjustable)
• *other sizes available on request
