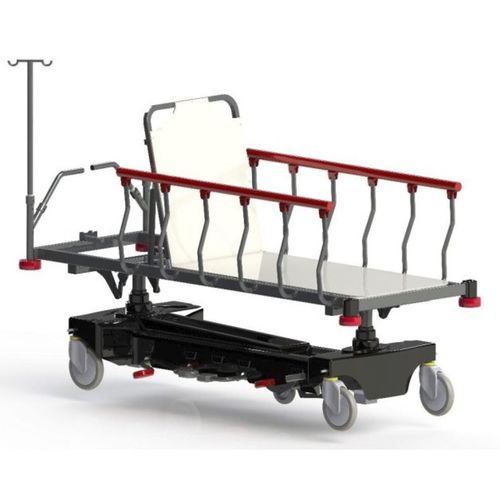

Transport stretcher MYS-600

for ambulancesemergencyheight-adjustable

Overview
The MYS-600 emergency stretcher is designed for fast, safe patient handling in emergency and resuscitation settings. Compliant with EN 60601-2-52, it combines compact dimensions, radiolucent cassette capability and essential accessories to support clinical workflows in hospitals and ambulance transfer.

General specifications

• Back adjustment via gas spring; foot section adjustment via Rastomat system. Height, Trendelenburg and reverse Trendelenburg operated by hydraulic pedals on both sides.
• Full-length polyurethane side rails for patient protection.
• Foldable push handles at head and foot ends for transport and storage.
• Full-length X‑ray cassette holder for radiographic imaging without patient transfer.
• Dedicated oxygen tube holder and 1 IV pole included.
• Ø200 mm swivel wheels with 360° rotation, central brake and directional lock for stable maneuvering.
• Four corner bumpers for impact protection.
• Compact laying surface optimized for emergency use.
• Chassis covered with ABS plastic; metal parts electrostatically painted.
• Waterproof mattress for easy cleaning and infection control.

Dimensions
Width (cm): 83
Length (cm): 213
Min. Height (cm): 67
Max. Height (cm): 95

Characteristics / Technical specifications

• Model: MYS-600 (Emergency stretcher)
• Standard compliance: EN 60601-2-52
• Back adjustment: gas spring
• Foot adjustment: Rastomat system
• Height / Trendelenburg / Reverse Trendelenburg: hydraulic pedals on both sides
• Side rails: full-length polyurethane
• Pushing bars: foldable at head and foot
• X-ray: full-length cassette holder
• Accessories: oxygen tube holder, 1 IV pole
• Wheels: Ø200 mm swivel wheels 360° with central brake and directional lock
• Protection: 4 corner bumpers
• Chassis: ABS plastic covered; metal parts electrostatically painted
• Mattress: waterproof
• Suitable for emergency department and patient transfer applications
