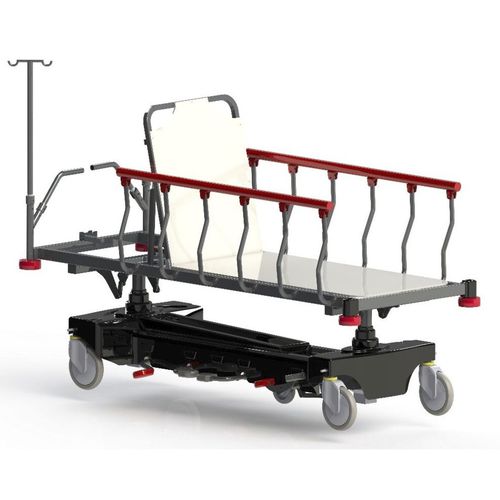

Emergency stretcher MYS-550B

bariatricheight-adjustableon casters

Product overview
Meyosis stretchers are designed in compliance with EN 60601-2-52 standards with a user-focused approach. With the motto “Comfort in Treatment,” Meyosis stretchers aim to provide comfort for both patients and healthcare professionals.

General Features

• Backrest adjustable with gas spring; leg section adjustable with rack mechanism
• Height adjustment, Trendelenburg and reverse Trendelenburg positions controlled by hydraulic pump via foot pedals on both sides
• Full-length polyurethane side rails
• Foldable metal pushing handles at head and foot ends
• Full-length X-ray cassette holder
• Oxygen cylinder holder
• Specially designed for obese patients
• 1 IV pole
• Ø200 mm diameter, 360° rotatable casters with central brake system and directional lock
• Plastic bumpers on all four corners of the stretcher
• Compact lying surface
• Lower chassis covered with ABS plastic; metal parts coated with electrostatic powder paint
• Waterproof mattress

Dimensions
Width: 100 cm
Length: 211.5 cm
Min height: 57.5 cm
Max height: 88.5 cm

Characteristics / Technical specifications

• Standards: Designed in compliance with EN 60601-2-52
• Model: MYS-550B
• Backrest: Gas spring adjustable
• Leg section: Rack mechanism adjustable
• Height adjustment: Hydraulic pump via foot pedals (both sides)
• Positions: Trendelenburg and reverse Trendelenburg
• Side rails: Full-length polyurethane
• Push handles: Foldable metal at head and foot ends
• X-ray: Full-length cassette holder
• Oxygen: Cylinder holder provided
• Patient type: Specially designed for obese patients
• Accessories: 1 IV pole
• Casters: Ø200 mm, 360° rotatable with central brake and directional lock
• Protection: Plastic bumpers on all four corners
• Chassis: Lower chassis covered with ABS; metal parts with electrostatic powder paint
• Mattress: Waterproof
• Dimensions: Width 100 cm; Length 211.5 cm; Height range 57.5–88.5 cm
