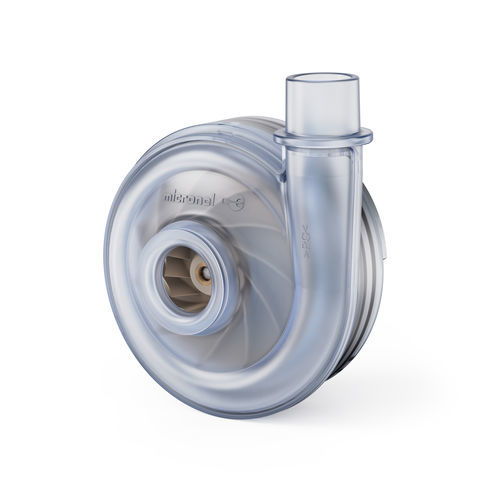

Artificial ventilation blower U65ML-012KS-5

medicalfor ventilatorsradial

Overview
This versatile, medical respiration blower has been designed for sleep apnea and homecare applications. It can be operated dynamically, has very low vibration and noise emission and features a steadily declining pressure/flow curve. U65ML, as well as U65HN and U65MN, are members of the U65 form-fit line which provides a uniform pressure and flow behaviour and mounting concept.

Units for Pressure / Flow Rate

• ISO: Pa – l/min
• IND: mbar – m³/h
• IMP: inH₂O – cfm

Key Features

• Static Pressure: 3600 Pa
• Freeflow: 260 l/min
• Size: Ø 65 mm
• Voltage: 12 VDC
• Power Consumption: 24 W
• Electronic Motor Driver: Not included
• Suitable for Medical Breathing: Yes
• O2 Resistance: Ambient Air (21%)
• Acceleration: High

Characteristics / Technical specifications

• Model family: U65 form-fit line (includes U65ML, U65HN, U65MN)
• Application focus: medical respiration (sleep apnea, homecare), high-flow therapy, home care ventilation
• Pressure / flow behaviour: steadily declining pressure/flow curve; designed for dynamic operation
• Vibration & noise: engineered for very low vibration and noise emission
• Mounting concept: form-fit line provides uniform mounting concept across U65 series
• Typical uses: high-flow therapy, homecare respiration, sleep apnea respiration
