Medical blower U71HL-024KM-53

laboratoryfor industrial applicationsradial

Description

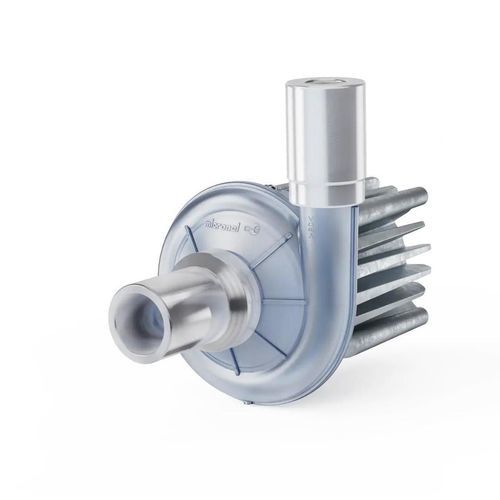

The Micronel radial blower U71HL-024KM-53 (option) is a compact, cost-oriented blower configured with inlet and outlet nozzles based on the base article U71HL-024KM-5. Units displayed by default on product pages: Pa – l/min (ISO).

Units
Pa – l/min (default). Alternative units available: mbar – m³/h, inH₂O – cfm.

Key features

• Static pressure: 6900 Pa
• Freeflow / Flow rate: 470 l/min
• Impeller / unit size: Ø 71 mm
• Nominal voltage: 24 VDC
• Power consumption: 63 W
• Electronic motor driver: Not included
• Medical breathing approval: No
• O2 resistance: Ambient air (21%)
• Acceleration rating: Mid

Options

• 01. Base article without nozzle — U71HL-024KM-5
• 02. With nozzle at inlet — U71HL-024KM-51
• 03. With nozzle at outlet — U71HL-024KM-52

Typical applications

• Air cushion packaging
• Negative pressure wound therapy (example use shown)
• Laboratory air sampling

Downloads

• Spec Sheet: Specification_U71HL-024KM-5.pdf (product specification)
• Operating Manual: Operating-Manual-Fans-and-Blowers_EN.pdf

Technical specifications

• Model / base article: U71HL-024KM-5 (product option U71HL-024KM-53 based on this article)
• Model (page): U71HL-024KM-53 (option)
• Type: Radial blower
• Static pressure: 6900 Pa
• Freeflow / Flow rate: 470 l/min
• Impeller / unit size: Ø 71 mm
• Nominal voltage: 24 VDC
• Power consumption: 63 W
• Electronic motor driver: Not included
• Medical breathing approval: No
• O2 resistance: Ambient air (21%)
• Acceleration rating: Mid
• Main use cases shown: air cushion packaging, negative pressure wound therapy, laboratory air sampling
• Available documents: Spec Sheet (product specification), Operating Manual (Fans & Blowers)
