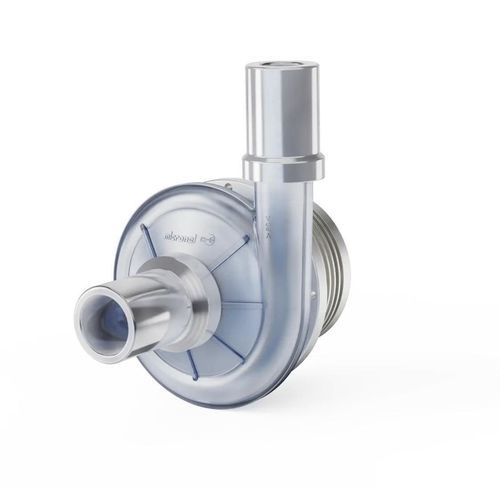

Medical ventilator centrifugal blower U85MX-024KE-43

industrialintegrated driverelectronic

Overview
This high-power, versatile radial blower is suitable for industrial or medical applications requiring high suction or pressure (e.g. cough processing, dental suction, vacuum handling). This item is the with inlet and outlet tube option, based on the U85MX-024KE-4 unit.

Key features

• High static pressure
• Large free flow (860 l/min)
• Compact dimensions (Ø 85 mm)
• Supply voltage 21 VDC
• Optimized power consumption (183 W)
• Integrated electronic motor (motorized plunger)
• Designed for medical respiration/ventilation
• O2 compatibility: ambient air (21%)
• Low acceleration

Options

• 01. Base unit without tube — U85MX-024KE-4
• 02. With inlet tube — U85MX-024KE-41
• 03. With outlet tube — U85MX-024KE-42

Available downloads

• Datasheet (product specification)
• CAD model (archive)
• User manual (Fans & blowers)

Technical specifications

• Static pressure: 12300 Pa
• Free flow: 860 l/min
• Dimensions: Ø 85 mm
• Voltage: 21 VDC
• Power consumption: 183 W
• Electronic motor (motorized plunger): Integrated
• Suitable for medical respiration: Yes
• O2 compatibility: Ambient air (21%)
• Acceleration: Low
