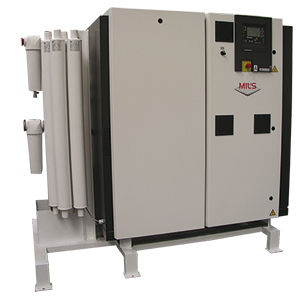

Medical air compression system HOSPITAIR® SKID
screwmodularlubricated

Medical air compression system - HOSPITAIR® SKID - MIL'S - screw / modular / lubricated
Medical air compression system - HOSPITAIR® SKID - MIL'S - screw / modular / lubricated
Medical air compression system - HOSPITAIR® SKID - MIL'S - screw / modular / lubricated - image - 2
Add to favorites
Compare this product

Go to the MIL'S website for more information

Characteristics

Applications
medical
Technology
screw
Configuration
modular
Options and accessories
lubricated
Pressure

11 bar, 15 bar
(159.54 psi, 217.56 psi)

Flow

Min.: 210 m³/h
(7,416.08 ft³/h)

Max.: 336 m³/h
(11,865.73 ft³/h)

Power

Min.: 22 kW
(29.91 hp)

30 kW, 37 kW
(40.79 hp, 50.31 hp)

Max.: 37 kW
(50.31 hp)

Weight

Min.: 755 kg
(1,664.5 lb)

Max.: 1,460 kg
(3,218.7 lb)

Noise level

Min.: 69 dB

Max.: 70 dB

Length

2,200 mm, 2,360 mm, 2,500 mm
(86.6 in, 92.9 in, 98.4 in)

Height

1,760 mm, 1,800 mm, 1,990 mm
(69.3 in, 70.9 in, 78.3 in)

Description

The medical air is produced from the ambient air, it is compressed and purified to be distributed in the centralized network which feeds the two pressure levels : a pressure level at 4 bar called “medical air” and a level of pressure at 7 bar named “instrumental air”. We offer two technologies : oilless compressors and lubricated compressors. The medical air must respect a strict quality level : air quality complying with European pharmacopoeia. HOSPITAIR SKID 11 or 15 bar medicinal air plans version, are equipped with lubricated screw compressors. The air treatment system is assembled with an adsorption air dryer SEC 7HC. These systems fit to the ISO 7396-1.
