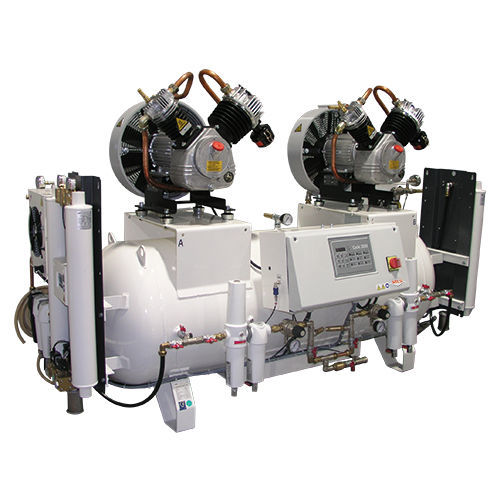

Medical air compression system HOSPITAIR 1/2
pistonlubricated

medical air compression system
medical air compression system
medical air compression system
Add to favorites
Compare this product

Go to the MIL'S website for more information

Characteristics

Applications
medical
Technology
piston
Options and accessories
lubricated
Pressure

10 bar
(145.04 psi)

Flow

11 m³/h, 20 m³/h, 27 m³/h
(388.46 ft³/h, 706.29 ft³/h, 953.5 ft³/h)

Power

1.7 kW, 3 kW, 4 kW
(2.31 hp, 4.08 hp, 5.44 hp)

Weight

Min.: 345 kg
(760.6 lb)

Max.: 475 kg
(1,047.2 lb)

Noise level

Min.: 62 dB

Max.: 77 dB

Description

The medical air is produced from the ambient air, it is compressed and purified to be distributed in the centralized network which feeds the two pressure levels : a pressure level at 4 bar called “medical air” and a level of pressure at 7 bar named “instrumental air”. We offer two technologies : oilless compressors and lubricated compressors. The medical air must respect a strict quality level : air quality complying with European pharmacopoeia. The HOSPITAIR 1 or 2 in version 10 or 15 bar medicinal air plans, are equipped with lubricated piston compressors. The air treatment system is assembled with an adsorption air dryer SEC 7HC. The control unit is done by electronic control board. These systems fit to the ISO 7396-1 standard.
