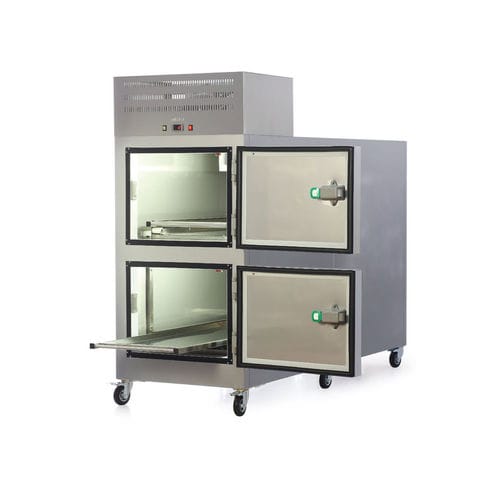

Mortuary stretcher mortuary cabinet MPC 2010

2-bodyfront-loadingon casters

Key features

• Cooling unit designed to store deceased bodies in hospitals, forensic centres, funeral homes and similar clinical environments.
• All internal and external parts manufactured in AISI 304 stainless steel.
• Top cover can be opened from the inside; two lid locks for secure closure.
• Interior lighting activated automatically when doors are opened.
• Digital temperature indicator and electronic controller.
• 304 stainless steel rails on bearings for smooth loading and unloading of stretchers.
• Fan-assisted internal evaporator, fully automatic defrost and condensate drain hose.
• Lockable castors for easy displacement and cleaning.
• Front-load, two-door design (side-loading variants available).
• External dimensions (W×L×H): 2360×870×2030 mm. Refrigerant unit located on top (compartment 400×600 mm).

Applications
Mortuary refrigeration units are intended for hospital morgues, forensic centres, funeral homes and similar facilities. Their primary functions are orderly storage, cold preservation and hygienic handling of deceased bodies for identification, autopsy, preparation and temporary storage prior to burial or transfer.

Options and customization
Units are offered in 2-body and 3-body capacities. Loading configuration can be front-loading or side-loading to suit installation constraints and workflow; confirm loading type when ordering. Freezer-type refrigeration for extended preservation and customised internal dimensions (for obese cases) are available on request.

Refrigeration system
The standard refrigerant is R404A. To meet regional regulatory requirements, alternative refrigerants can be supplied, including R407A, R407F, R448A and R449A. The refrigerant unit is top-mounted; customers must be informed of unit location before production.

Technical specifications

• Model / Code: MPC 2010
• Material: AISI 304 stainless steel (all internal and external parts)
• Capacity: 2 bodies (also available in 3-body versions)
• Loading type: front-load or side-load (confirm at order)
• Doors: two-door front-load design
• Interior lighting: automatic on door opening
• Temperature control: digital indicator and electronic controller
• Cooling: fan-assisted internal evaporator; fully automatic defrost
• Condensate: drain hose provided
• Rails: AISI 304 stainless steel rails on bearings for smooth handling
• Mobility: lockable castors for cleaning and positioning
• External dimensions (W×L×H): 2360 × 870 × 2030 mm
• Refrigerant unit location: top-mounted; compartment 400 × 600 mm (height × length)
• Refrigerants: R404A standard; alternatives R407A, R407F, R448A, R449A
• Options: freezer refrigeration, custom dimensions for obese bodies
