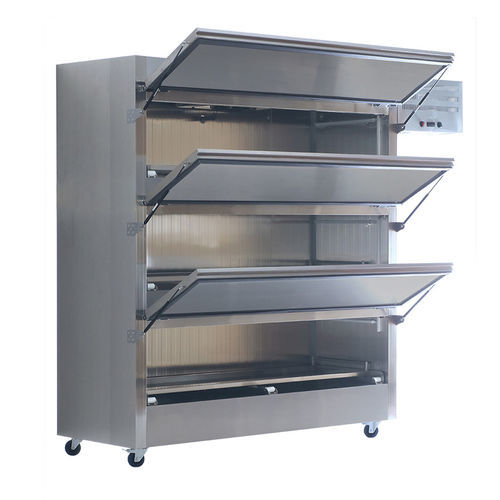

Mortuary stretcher mortuary cabinet MPC 3011

for body trays3-bodyside-loading

Product overview
Panel-type mortuary unit designed for clinical and hospital use to store and preserve human remains under controlled low-temperature conditions. Built for side loading with three side doors and lockable castors for mobility and cleaning.

Key features

• Internal and external construction in AISI 304 stainless steel for corrosion resistance and hygienic surfaces
• Automatic interior lighting activated when a door is opened
• Digital temperature indicator and electronic control
• 304 stainless-steel rail system with bearings for smooth loading and unloading of trolleys/troughs
• Fully automatic defrost and fan‑controlled internal cooler
• Condensate drain hose and easy service access
• Lockable wheels for convenient displacement and cleaning
• Side-loading design with three side doors
• Overall dimensions (W×L×H): 2760 × 800 × 2465 mm
• Refrigerant unit located on the side (pre-production confirmation required); unit housing dimensions: 400 × 600 mm (H×L)

Capacity & loading
The MPC 3011 is configured for three bodies. Panel-type mortuary units are available in 2- and 3-body variants. Depending on site layout and workflow, choose front-loading or side-loading — this model is side-loading for lateral access.

Hygiene & filtration
Designed for clinical environments: the unit supports sanitary protocols with smooth stainless surfaces and can be fitted with specific filtration to limit odour dispersion and reduce microbial risk, aiding hygiene and infection-control procedures.

Cooling & refrigerants
Standard refrigeration uses R404A for high cooling capacity; freezer refrigeration upgrade is available for longer-term preservation. To meet regional regulations (EU), systems can be supplied with alternative refrigerants such as R407A, R407F, R448A and R449A. Service access and refrigerant placement must be confirmed prior to production.

Customization & options
Options include freezer refrigeration, customised internal dimensions to accommodate bariatric cases on request, and selection of compliant refrigerants. Installation requirements (refrigerant unit position, utility connections, space for service access) should be agreed before manufacture.

Technical specifications

• Model / SKU: MPC 3011
• Type: Panel-type mortuary unit — Triple side-door (side-loading), 3-body
• Material: AISI 304 stainless steel (internal and external)
• Interior lighting: Automatic (activates on door opening)
• Control: Digital temperature indicator and electronic control
• Rails & loading: 304 stainless-steel rails with bearings for smooth loading/unloading
• Defrost: Fully automatic
• Cooling: Fan-controlled internal cooler; freezer option available
• Condensate management: Condensate drain hose
• Mobility: Lockable castors for displacement and cleaning
• Capacity: 3 bodies (also available in 2-body variants)
• Loading orientation: Side loading (three side doors)
• Dimensions (W×L×H): 2760 × 800 × 2465 mm
• Refrigerant unit location: Side (customer must confirm location prior to production) — unit housing 400 × 600 mm (H×L)
• Refrigerants: R404A standard; EU-compliant alternatives R407A, R407F, R448A, R449A
• Customization: Dimensions can be adapted for bariatric cases on request
