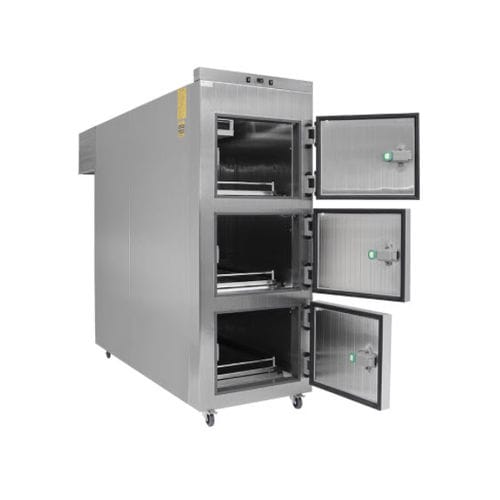

Body tray refrigerated mortuary cabinet MPC 3010

3-bodyfront-loadingon casters

Product Overview
The panel-type mortuary unit MPC 3010 is a front-loading refrigeration system designed for hospitals, forensic centres and funeral homes to provide organised cold storage and preservation of deceased bodies.

Key Features

• Front-load design with three independent front doors for easy placement and removal
• All internal and external parts in 304 stainless steel for hygienic cleaning
• Two lid locks and interior lighting that activates when a door is opened
• Digital temperature indicator and control for precise setpoint management
• 304 stainless steel rail system on bearings for smooth tray loading and unloading
• Fan-controlled internal cooler, fully automatic defrost and condensate drain hose
• Lockable wheels for safe displacement and cleaning
• Refrigerant unit mounted at the rear (unit dimensions: 400 x 600 mm)

Capacity and Variants
The MPC 3010 is offered in a 3-cadaver configuration; a 2-cadaver variant is also available. The MPC 3010 specifically features a front-loading layout with three front doors.

Cooling and Refrigerants
The standard refrigerant is R404A. For compliance with EU regulations, alternative refrigerants include R407A, R407F, R448A and R449A. Freezer refrigeration options are available for extended preservation when required.

Hygiene, Usability and Construction
The unit is manufactured from AISI 304 stainless steel internally and externally, facilitating disinfection and routine cleaning. Independent front doors improve workflow for body handling. Dedicated filtration systems limit odour dispersion and help reduce infection risk.

Advanced Cooling Technology
Adjustable temperature settings, quiet fan-controlled operation and energy-efficient design enable precise and reliable cold preservation suitable for sensitive clinical environments.

Technical Specifications

• Model / Code: MPC 3010
• Product type: Panel-type mortuary unit (triple front doors)
• Capacity: 3 cadavers (2-capacity variant available)
• Loading type: Front-load
• Material: 304 stainless steel (internal and external)
• Overall dimensions (W x L x H): 2960 x 870 x 2200 mm
• Refrigerant unit location: Rear; refrigerant unit dimensions: 400 x 600 mm
• Standard refrigerant: R404A (EU alternatives: R407A, R407F, R448A, R449A)
• Cooling features: Fan-controlled internal cooler, fully automatic defrost, condensate drain hose
• Control: Digital temperature indicator and control
• Lighting: Interior lighting activates on door opening
• Doors: Three independent front doors
• Rails: 304 stainless steel rail design on bearings for smooth tray handling
• Mobility: Lockable wheels for displacement and cleaning
