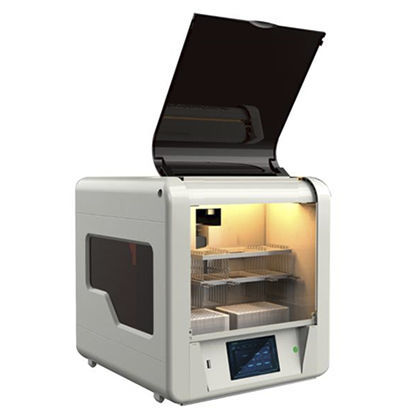

Clinical diagnostic nucleic acid extractor MNE-32-01

for animal research

The instrument is high-technology product designed to extract nucleic acid by taking advantage of magnetic beads, which have high degree of automation, fast extraction speed and stable results, and used 96 deep well plates to deal with 1-32 samples simultaneously. It takes advantage of magnetic bar to move magnetic particle from one well to another, and then fast mixes liquid though the outer tip comb to mix them well. After cell lysis, nucleic acid adsorption, washing and elution, the users will get high purity nucleic acids finally. Features: ★Touch screen operation: Large-screen, full-color display, touching control and easy to operate. ★Accurate Control: Work without connecting to PC, stand-alone design saves more space and energy, and provides higher stability. ★Temperature Control: User-defined temperature for lysis and elution. ★Free Programming: Flexible and efficient to meet the demands of different reagents. ★Rapid Extraction: Single experiment costs 30-60 minutes with relevant reagents. High throughput and 32 samples are extracted simultaneously. ★Extraction Efficiency: According to optimized purification scheme of reagents, you can choose the precise incubation time, achieve higher extraction efficiency, extract higher DNA / RNA which can be directly used for PCR or RT-PCR. Technical Characteristics: ★Volume: 50uL-800µl ★Sample: 1-32 ★Magnetic Beads Recycling Efficiency: ≥ 95% ★Plate Type: 96 deep well plates (50–800 µl*) ★Purification Accuracy between Well: CV≤10% ★Magnetic Rods: 32 ★Mixing Mode: Optional multi-mode and multi-gear for mixing ★Reagents Category: Open reagents of magnetic beads Operation Interface: 5-inch color LCD and touch screen
