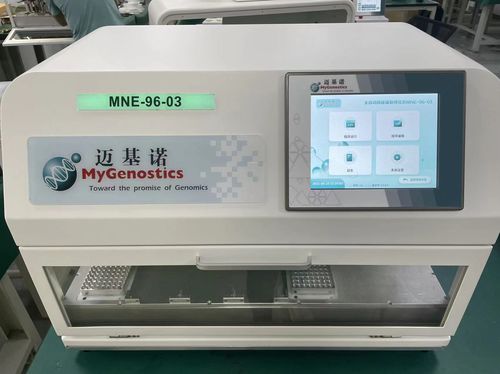

Clinical diagnostic nucleic acid extractor MNE-96-03

Introduction： MNE-96-03 Nucleic Acid Extraction Machine adopting magnetic rod technology, Together with nucleic acid extraction kit, enables automatic nucleic acid extraction of 96 samples maximally in one time, High quality viral nucleic acids (DNA and RNA) are extracted and purified from serum, plasma, urine, virus culture medium, nasal (pharyngeal) swab or vaginal swab samples through magnetic beads and buffer system. The purified nucleic acid can be used in routine scientific research, genomics, disease control, food safety, forensic medicine, molecular biology experiments, etc. Features： •High throughput: 96 samples at the same time. •Efficiency: 12 minutes extracting and purifying nucleic acid from samples. •Intelligent: 8’’ LCD, user-friendly software. •Safe: HEPA filtration system and UV lamp, avoiding cross-contamination and ensuring a safe working environment. •Stable: Reliable hardware design, 96-well plate reagent and disposable tip, minimizing operational errors. Parameters： Model: MNE-96-03 Power: AC 100V-240V 50/60 Hz 450W Sample Throughput: 1-96 Efficiency of Magnetic Bead Recycle：≥99% Plate Type：96-deep-well plate Processing Volume: 50μL-1000μL Size (Width×Depth×Height)：660×400×450mm Weight: 30kg Reagent Type：magnetic bead Oscillating Mixing: Multi-mode and multi-speed for adjustment Auxiliary Reagent: MyGenostics Nucleic Acid Extraction Kit Program Management: New build, free and flexibly edit extraction system. Heating Temperature: 20 -100℃ Contamination Control：The experimental cabin is equipped with an external HEPA filter independent air path, in which the biological filter cotton can absorb the nucleic acid aerosol.
