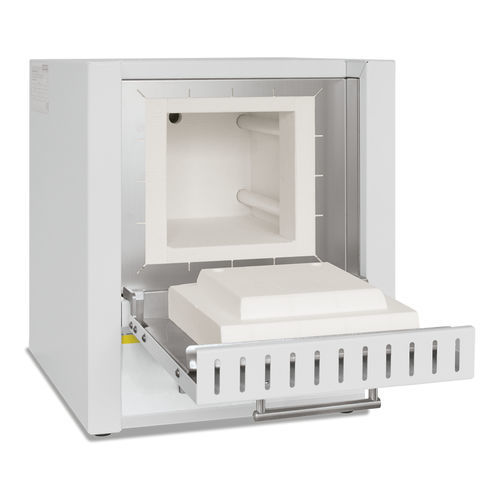

Heating furnace LE 1/11

laboratorymufflestainless steel

Short description
Compact Economy muffle furnaces for laboratory use with a dual-shell stainless steel housing, quartz-glass protected heating elements and fast heat-up performance. Available in five workspace volumes (1–24 L) and equipped with an R8 single-temperature controller; designed for defined laboratory processes up to 1100 °C.

Standard Equipment

• Tmax 1100 °C (recommended long-term working temp for long dwells: 1050 °C)
• Two-sided heating via heating elements protected in quartz glass tubes
• Fast heating times (see table)
• Maintenance-friendly replacement of heating elements and insulation
• Housing coated in RAL 9003
• Use of insulation materials without classification according to EC Regulation No. 1272/2008 (CLP)
• Dual-shell housing of textured stainless steel sheets with additional fan cooling for low surface temperature
• Flap door which can be used as a work platform
• Exhaust air outlet in rear wall
• Solid state relays for low-noise operation
• Compact dimensions and low weight
• Controller mounted under the door to save space (Controller R8 — single-temperature adjustable)
• Defined application within the constraints of the operating instructions

Additional equipment

• Chimney, chimney with fan or catalytic converter (not for LE 1 and LE 2)
• Charging rack with closed or perforated trays for two-level loading including holder for inserting/removing trays (max. temp. 800 °C). Max. loading weight per layer: LE 14/11 = 2 kg, LE 24/11 = 3.5 kg

Technical specifications (table)
Model | Tmax (°C) | Inner dimensions W x D x H (mm) | Volume (l) | Outer dimensions W x D x H (mm) | Temperature uniformity ±5 K (empty workspace) | Connected load (kW) | Electrical connection | Weight (kg) | Heating time (min)
LE 1/11 | 1100 | 90 x 115 x 110 | 1 | 310 x 300 x 410 | 40 | 1.6 | 1-phase | 15 | 6
LE 2/11 | 1100 | 110 x 180 x 110 | 2 | 330 x 365 x 410 | 60 | 1.9 | 1-phase | 20 | 11
LE 6/11 | 1100 | 170 x 200 x 170 | 6 | 390 x 385 x 470 | 120 | 2.0 | 1-phase | 27 | 27
LE 14/11 | 1100 | 220 x 320 x 220 | 14 | 440 x 485 x 520 | 170 | 3.2 | 1-phase | 35 | 30
LE 24/11 | 1100 | 260 x 330 x 285 | 24 | 480 x 515 x 585 | 230 | 3.5 | 1-phase | 42 | 40

Notes
1) Recommended working temperature for processes with longer dwell times is 1050 °C.
2) External dimensions vary when furnace is equipped with additional equipment; dimensions on request.
3) Heating time = empty, closed furnace up to Tmax − 100 K (connected to 230 V 1/N/PE).
4) Temperature uniformity ±5 K with closed fresh-air inlet in empty workspace according to DIN 17052-1 at working temperatures above 800 °C.
5) Connected load refers to the standard furnace and may increase with additional equipment.

Technical features / specifications

• Maximum temperature: 1100 °C
• Heating: two-sided heating with elements protected in quartz glass tubes
• Available workspace volumes: 1, 2, 6, 14, 24 L (LE 1/11 – LE 24/11)
• Controller: R8 (single-temperature adjustable), mounted under the door
• Housing: dual-shell stainless steel with fan cooling; external coating RAL 9003
• Insulation: CLP-unclassified insulation materials
• Exhaust: rear-wall outlet; optional chimney, fan or catalytic converter
• Accessories: charging racks for two-level loading (max. 800 °C), trays, bottom plates, gloves and tongs
• Electrical: single-phase connections (connected load 1.6–3.5 kW depending on model)
• Typical heating times: see table (heating to Tmax − 100 K, empty furnace)
