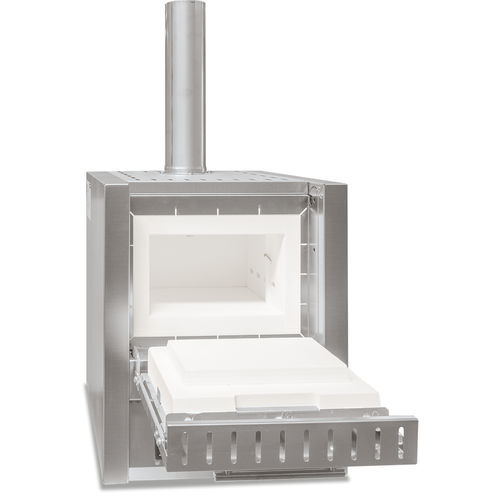

Analysis furnace LV 3/11

preheatingheatinglaboratory

Product overview
Ashing furnace series LV / LVT (models 3/11–15/11) is engineered for laboratory ashing up to 1050 °C (design Tmax 1100 °C). Typical uses include loss on ignition, ashing of food and plastics and other standardized laboratory ashing methods (ISO, ASTM, EN, DIN). A dedicated fresh‑air and exhaust system provides more than 6 air exchanges per minute; incoming air is preheated along the furnace heating to improve temperature uniformity.

Standard equipment

• Tmax 1100 °C
• Dual‑sided heating with ceramic heating plates (integral heating element, protected and replaceable)
• Air exchange >6 times/min
• Preheated incoming air for improved temperature uniformity (DIN 17052‑1: ±10 °C from 550 °C)
• Dual‑shell stainless steel housing with additional fan cooling for low external surface temperature
• Insulation materials without CLP classification (EC Reg. 1272/2008)
• Controller B510 with touch operation (5 programs × 4 segments)
• Solid state relays for low‑noise operation
• NTLog Basic for process data recording via USB
• Variants: front hinge door (LV) or lift door (LVT)

Additional equipment

• Adjustable over‑temperature limiter for protection of furnace and load
• Thermocouple port in rear wall or furnace door
• Charging racks with closed or perforated trays for two‑level loading; tray holder for insertion/removal up to 800 °C (max. load per layer: e.g. 2 kg for LV(T) 9/11, 3 kg for LV(T) 15/11)
• VCD software package for process control, monitoring and documentation

Technical specifications (selected models)

• LV 3/11 | Tmax 1100 °C | Inner 180 × 150 × 120 mm | Volume 3 L | Outer 345 × 390 × 810 mm | Max organic load 5 g | Max evaporation 0.1 g/min | Connected load 1.3 kW | 1‑phase | Weight 20 kg | Heating time 45 min
• LV 5/11 | 1100 °C | 205 × 170 × 130 mm | 5 L | 385 × 415 × 810 mm | 10 g | 0.2 g/min | 2.6 kW | 1‑phase | 29 kg | 55 min
• LV 9/11 | 1100 °C | 235 × 240 × 170 mm | 9 L | 415 × 485 × 865 mm | 15 g | 0.3 g/min | 3.3 kW | 1‑phase | 36 kg | 70 min
• LV 15/11 | 1100 °C | 230 × 340 × 170 mm | 15 L | 415 × 590 × 865 mm | 25 g | 0.3 g/min | 3.6 kW | 1‑phase | 44 kg | 80 min
• LVT 3/11 | 1100 °C | 180 × 150 × 120 mm | 3 L | 345 × 390 × 810 mm | 5 g | 0.1 g/min | 1.3 kW | 1‑phase | 20 kg | 45 min
• LVT 5/11 | 1100 °C | 205 × 170 × 130 mm | 5 L | 385 × 415 × 810 mm | 10 g | 0.2 g/min | 2.6 kW | 1‑phase | 29 kg | 55 min
• LVT 9/11 | 1100 °C | 235 × 240 × 170 mm | 9 L | 415 × 485 × 865 mm | 15 g | 0.3 g/min | 3.3 kW | 1‑phase | 36 kg | 70 min
• LVT 15/11 | 1100 °C | 230 × 340 × 170 mm | 15 L | 415 × 590 × 865 mm | 25 g | 0.3 g/min | 3.6 kW | 1‑phase | 44 kg | 80 min

Key features

• Temperature uniformity ±10 °C (DIN 17052‑1, empty work area from 550 °C)
• Air handling: >6 air exchanges/min with preheating to ensure consistent oxidation during ashing
• Dual‑shell stainless housing and fan cooling reduce external surface temperature
• Control and data logging: B510 touchscreen controller and NTLog USB recording; optional VCD for extended process documentation
• Designed for standardized ashing procedures and defined laboratory use per operating instructions
