Analysis oven L(T) 9/11/SW

heatinglaboratoryfor laboratory waste

Overview

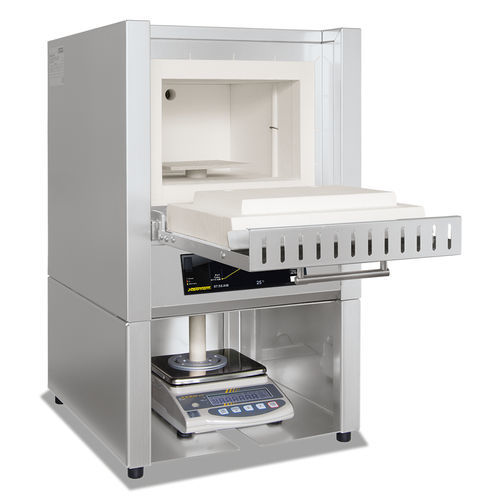

This weighing muffle furnace is delivered with an integrated base, a ceramic plunger with base plate and a VCD software package for determination and documentation of combustion loss. It is designed for laboratory combustion-loss analysis of sludges, waste and similar materials. During the process the software records temperature and weight loss and documents the combustion-loss value.

Process and measurement
The system continuously records temperature and mass change so the combustion loss (difference between initial charged mass and combustion residue) is documented together with the temperature profile. The VCD software provides monitoring, documentation and process control. One of four compatible scale modules can be mounted in the integrated base (scales ordered separately).

Standard equipment

• Based on L(T) series muffle furnaces with modifications for weighing and combustion-loss analysis
• Delivery includes integrated base, ceramic plunger with base plate and VCD software package
• Option of 4 scale modules for different maximum weights and readabilities (ordered separately)
• Process control and documentation for temperature and combustion loss via VCD package
• Controller B510 (touch operation, 5 programs with 4 segments) as delivery option

Options

• Chimney, chimney with fan or catalytic converter
• Over-temperature limiter with adjustable cutout temperature
• Thermocouple port in rear wall or furnace door
• VCD software as additional or integrated option for monitoring, documentation and control

Operation notes and technical specifications
Recommended working temperatures for long dwell times: 1000 °C (L(T) 9/11/SW) and 1100 °C (L(T) 9/12/SW). Scale modules are supplied separately and are mounted in the integrated base. Connected load and external dimensions may vary with options.

Technical table (key values)
L(T) 9/11/SW | Tmax 1100 °C | Inner 230 × 240 × 170 mm | Volume 9 l | Outer 415 × 455 × 740+240 mm | Connected load 3.3 kW | 1‑phase | Weight 50 kg | Heating time 68 min
L(T) 9/12/SW | Tmax 1200 °C | Inner 230 × 240 × 170 mm | Volume 9 l | Outer 415 × 455 × 740+240 mm | Connected load 3.3 kW | 1‑phase | Weight 80 kg | Heating time 80 min

Scales (to be ordered separately)
EW-2200 | Readability 0.01 g | Max 2200 g incl. plunger | Plunger 850 g | Calibration value 0.1 g | Min load 0.5 g
EW-4200 | Readability 0.01 g | Max 4200 g incl. plunger | Plunger 850 g | Calibration value 0.1 g | Min load 0.5 g
EW-6200 | Readability 0.01 g | Max 6200 g incl. plunger | Plunger 850 g | Calibration value - | Min load 1.0 g
EW-12000 | Readability 0.10 g | Max 12000 g incl. plunger | Plunger 850 g | Calibration value 1.0 g | Min load 5.0 g

Additional technical remarks
Heating times refer to an empty closed furnace up to Tmax −100 K (connected to 230 V 1/N/PE). Connected load refers to standard configuration and may increase with fitted options.
