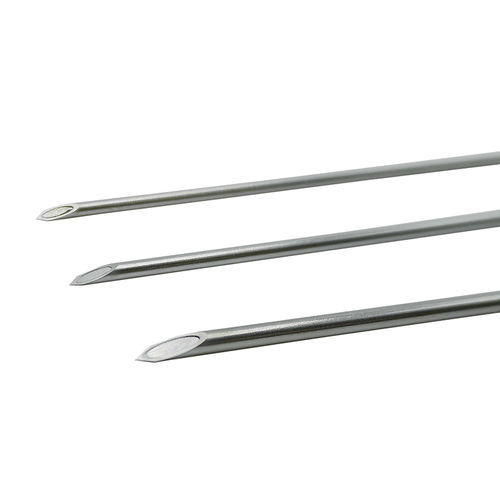

Anesthesia needle AN-S

Quincke17G26G

Combined Anesthesia Needles with a Quincke tip designed for spinal and epidural procedures, offering a larger inner diameter for high flow and fast cerebrospinal fluid (CSF) flashback and improved anesthetic distribution.

Key product highlights

• Larger inner diameter for high flow rate
• High flow rate enables faster CSF flashback
• Aggressive anesthetic distribution upon injection
• Needle bevel designed for smoothness and maximum sharpness to improve patient comfort
• Snug-fit stylet design to prevent tissue coring

Product Features

• Intended use: Spinal needles are applied to puncture, drug injection, and cerebrospinal fluid collection through lumbar vertebra. Epidural needles are applied to puncture the human body epidural, anaesthesia catheter insertion, injection of drugs.

Product Parameters

• Needles (inner): Gauge 16G-27G; Size 0.4-1.2 mm; Effective length 60-150 mm
• Needles (outer): Gauge 16G-27G; Size 0.7-2.1 mm; Effective length 30-120 mm

Technical specifications

• Model / Denomination: Quincke Tip (AN-S/S I)
• Item No.: 13056
• Intended applications: spinal puncture, drug injection, cerebrospinal fluid collection (lumbar); epidural puncture, anesthesia catheter insertion, drug injection
• Inner needle gauge range: 16G–27G
• Inner needle size range: 0.4–1.2 mm
• Inner needle effective length: 60–150 mm
• Outer needle gauge range: 16G–27G
• Outer needle size range: 0.7–2.1 mm
• Outer needle effective length: 30–120 mm
