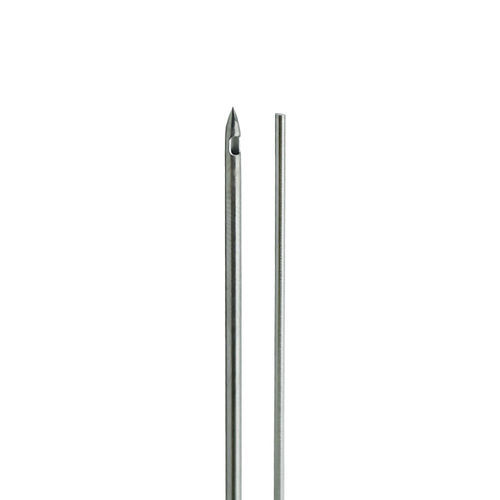

Spinal anesthesia needle AN-S

blunt22G18G

Combined Anesthesia Needle Sprotte Type (AN-S/S II) are spinal needles designed for atraumatic dural puncture and controlled directional flow of anesthetic agents. They feature a precision-formed lateral side hole, a lateral opening with fitted mandrel to prevent the biopsy effect, and a conical tip with no sharp edges to minimise post-spinal headache risk.

Key benefits

• Precision-formed side hole for directional flow of anesthetic agents and reduced risk of straddling the dura
• Special needle design with lateral opening and fitted mandrel to preclude the biopsy effect during puncture
• Conical needle tip with no sharp edges enabling atraumatic puncture of the dura and minimising risk of post-spinal headache

Product features

• Intended use: Spinal needles are applied to puncture, drug injection, and cerebrospinal fluid collection through the lumbar vertebra

Product parameters

• The needles (inner): Gauge: 18G-22G; Size: 0.4-1.2 mm; Effective length: 60-150 mm
• The needles (outer): Gauge: 18G-22G; Size: 0.7-2.1 mm; Effective length: 30-120 mm

Technical specifications

• Model designation: AN-S/S II (Sprotte type combined anesthesia needle)
• Design highlights: lateral/side hole (precision-formed), lateral opening with fitted mandrel, conical atraumatic tip
• Intended applications: lumbar puncture, spinal anesthesia injection, cerebrospinal fluid collection
• Inner needle options: gauge range 18G–22G; diameter 0.4–1.2 mm; effective length 60–150 mm
• Outer needle options: gauge range 18G–22G; diameter 0.7–2.1 mm; effective length 30–120 mm
• Item number on page: 13063
