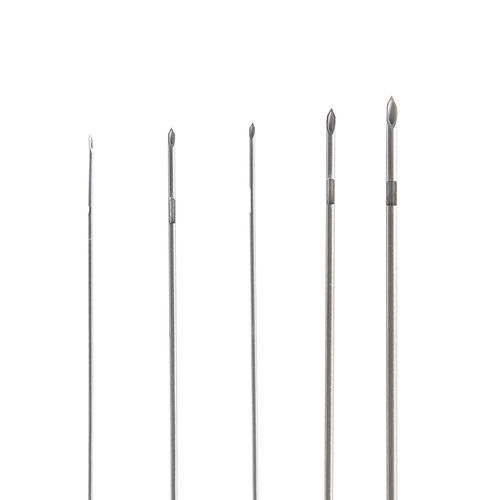

Injection cannula 13165

vascular accessstainless steel

IV cannula with side hole is an intravenous catheter cannula engineered with a side hole to provide a larger inner diameter and higher flow rate, offering a wider range of puncture angles and improved rigidity compared with front-vented retractable indwelling catheter tubes.

Key points:

• Larger inner diameter for higher flow rate
• Wider range of puncture angles
• Blade rotated 90° sideways for increased rigidity vs. front-vented retractable indwelling catheter tubes

Product Features:

• Intended use: Material SUS304, good piercing force, strong stability and enhanced rigidity. Designed for assembling I.V. catheters and connecting to infusion sets and other infusion tubing to administer fluids.

Technical specifications:

• Item No.: 13165
• Material: SUS304
• Gauge: 20G - 28G
• Outer diameter: 0.36 - 0.88 mm
• Length: 30 - 100 mm
• Design: Side hole; blade rotated 90° sideways to enable wider puncture angles and improved rigidity
• Application: For assembling I.V. catheters and connecting to infusion sets and other infusion tubing to administer fluids
