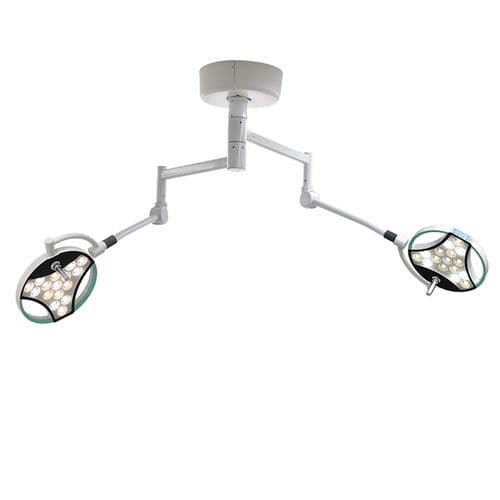

Ceiling-mounted surgical light JD1700J Pro

LEDminor surgery2-arm

Product Features

• Freedom Of Movement
• Long Bulb Life Minimizes Maintenance
• Homogeneous Illumination

JD1700J Pro Minor Surgery Light
1. Uniform and concentrated light patch: 130,000Lux Maximum at 1M Distance; 4,000 - 5,300K color temperature adjustable.
2. No heat dissipation: improved patient comfort and safety.
3. Better Tissue Differentiation (Superficial And Deep Structure): Color rendering index fixed at 93 remix with White + yellow LEDS.
4. Perfect light head stability: Flexible spring arm with solution for single ceiling / wall mounted / double ceiling / portable.

Suitable for A Wide Range of Medical Applications:

• MINOR SURGERY / EMERGENCY ROOM CONCENTRATED AND SAFE WORK.
• GYNECOLOGY / OBSTETRICS DISCRETION AND EMPATHY.
• INTENSIVE CARE INTENSIVE AND SENSITIVE LIGHTING.

Design

• Homogeneous Illumination.
• Long Bulb Life Minimizes Maintenance.
• Freedom Of Movement.
• A Small Environmental Footprint.

Product Introduction
JD1700 Pro has an innovative design that integrates seamlessly into any department. An ergonomic handle makes it easy to direct the lightweight, triangular-shaped light head towards a wound or surgical site for diagnosis or treatment. The unique shape supports flexible positioning, and maintains a perfectly round light field with maximal light output and excellent shadow dilution. The design uses lightweight, versatile, durable, and recyclable components as well as low-energy LED bulbs to support your facility’s sustainability programs.

Technical Specifications
Model No: JD1700J Pro
Voltage: 95-245V, 50/60Hz
Light Intensity at EC (1M): 13,000-130,000Lux / 13,000-130,000Lux
LED Bulb Size Diameter (pc): 35MM
Lamp head diameter: 335MM = 13.19"
Endo / Practice Mode Light: 6pcs Yellow+1pc White LEDS
Color temperature: 4,000 - 5,300K (5 steps Adjustable)
Illumination depth 20%: 1200MM
Color Rendering Index (RA): 93
LED Service Life: 80,000H
Light Intensity Control: 10 - 100% (10 steps)

Characteristics / Technical Specifications

• Model: JD1700J Pro
• Voltage: 95-245V, 50/60Hz
• Light Intensity at EC (1M): 13,000-130,000Lux
• LED Bulb Size Diameter: 35MM
• Lamp head diameter: 335MM (13.19 inches)
• Endo / Practice Mode Light: 6pcs Yellow + 1pc White LEDs
• Color temperature: 4,000 - 5,300K (5 steps Adjustable)
• Illumination depth 20%: 1200MM
• Color Rendering Index (RA): 93
• LED Service Life: 80,000 hours
• Light Intensity Control: 10 - 100% (10 steps)
