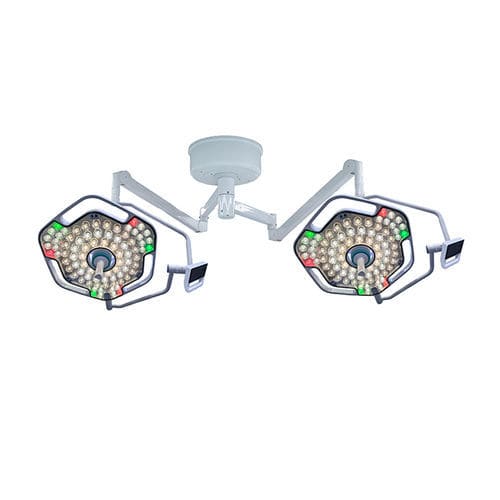

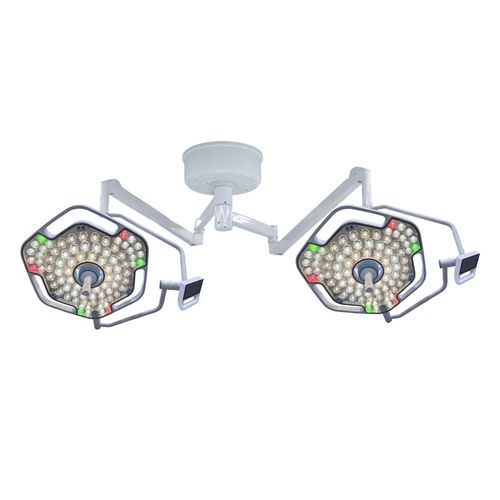

Ceiling-mounted surgical light Stella-led E700/700

LEDveterinarydental

PRODUCT FEATURE

• Stella-led E700/700 dual-head ceiling surgical light

APPLY TO

• Hospital operating rooms and major surgery
• Surgical centers and outpatient ORs
• Dental, ENT and gynecology procedures
• Orthopedics and ophthalmology
• Veterinary surgery centers

PRODUCT INTRODUCTION
ASM auto shadow management links both heads so that when one head is obstructed the other instantly compensates for continuous shadowless illumination. High-fidelity tissue visualization is provided by CRI 98 (RA/R9/R13), delivering accurate color and contrast for precise dissection. The 5-inch LCD touch screen with synchronized control allows a single operator to adjust both heads without entering the sterile field. Designed for the OR environment with IP54 protection, LED lifespan approx. 80,000 hours, head temperature rise ≤1 ℃ and a deep-cavity reach up to 1800 mm. Manufacturer certified to ISO 13485, CE and FDA.

TECHNICAL TABLE

• Model No: Stella-led E700/700
• Working Voltage: 95V - 245V, 50/60Hz
• Light Intensity (at EC 1 m): 40,000 - 160,000 Lux (each head)
• Light Intensity Control: 0 - 100% (10 steps)
• Color Temperature: 4,000 - 5,700K (10 steps)
• Color Rendering Index: CRI 98 (RA / R9 / R13)
• LED Life Span: approx. 80,000 hours

ADDITIONAL FEATURES

• ASM auto shadow management for continuous shadowless illumination
• High color rendering index (CRI 98) for accurate tissue color
• 5-inch LCD touch control with synchronized control of both heads
• IP54 protection suitable for OR environment
• LED lifespan approx. 80,000 hours and cool-head temperature rise ≤1 ℃
• Deep-cavity reach up to 1800 mm

TECHNICAL SPECIFICATIONS

• Model: Stella-led E700/700
• Working Voltage: 95V - 245V, 50/60Hz
• Light Intensity (at EC 1 m): 40,000 - 160,000 Lux
• Light Intensity Control: 0 - 100% (10 steps)
• Color Temperature: 4,000 - 5,700K (10 steps)
• Color Rendering Index (RA / R9 / R13): 98
• LED Life Span: 80,000 hours
• Control: 5-inch LCD touch screen, synchronized control for both heads
• Protection Rating: IP54
• Thermal performance: head temperature rise ≤1 ℃
• Reach / Depth: up to 1800 mm
• Certifications: ISO 13485, CE, FDA
