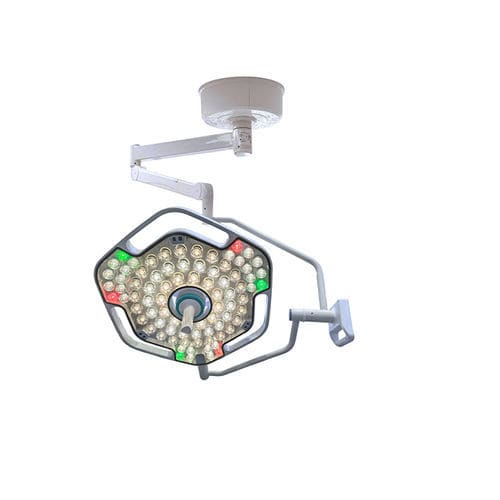

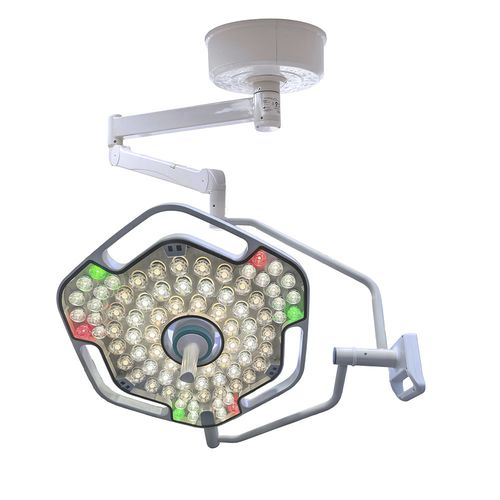

Ceiling-mounted surgical light Stella-led E700

LEDveterinarydental

PRODUCT FEATURES

• Stella-led E700 ceiling surgical light
• Designed for hospitals, surgical centers and specialist clinics
• Suitable specialties: Gynecology, ENT, Dental, Orthopedics, Ophthalmology, Veterinary surgery

PRODUCT INTRODUCTION
Accurate tissue visualization with high fidelity color rendering: CRI 98 (RA / R9 / R13) for consistent color reproduction during procedures.
Customizable illumination for each procedure step: 10-step intensity (0–100%) and 10-step color temperature (4,000–5,700 K) controlled via the integrated 5" touch screen.
Certified for clinical use: ISO 13485, CE and FDA listed product.
Precise positioning: 360° rotation, +45° / -50° tilt, 1,100 mm vertical travel and adjustable light field diameter from 140 to 330 mm.
Durable and low maintenance: up to 80,000 hours LED life, ≤1 °C cool head temperature and IP54 protection rating.

MODEL SPECIFICATIONS
Model No: Stella-led E700
Working Voltage: 95V - 245V, 50/60Hz
Light Intensity at EC (1 m): 40,000 - 160,000 Lux
Light Intensity Control: 0 - 100% (10 steps)
Color Temperature: 4,000 - 5,700 K (10 steps)
Color Rendering Index RA / R9 / R13: 98
LED Life Span: 80,000 hrs

TECHNICAL CHARACTERISTICS / SPECIFICATIONS

• Model: Stella-led E700
• Working voltage: 95V - 245V, 50/60Hz
• Light intensity (EC, 1 m): 40,000–160,000 Lux
• Intensity control: 0–100% in 10 steps
• Color temperature: 4,000–5,700 K adjustable in 10 steps
• Color rendering index: CRI 98 (RA / R9 / R13)
• LED life span: 80,000 hours
• Control interface: 5" touch screen
• Mechanical movement: 360° rotation, +45° / -50° tilt
• Vertical travel: 1,100 mm
• Adjustable light field diameter: 140–330 mm
• Thermal performance: ≤1 °C cool head
• Protection rating: IP54
• Certification: ISO 13485, CE, FDA
