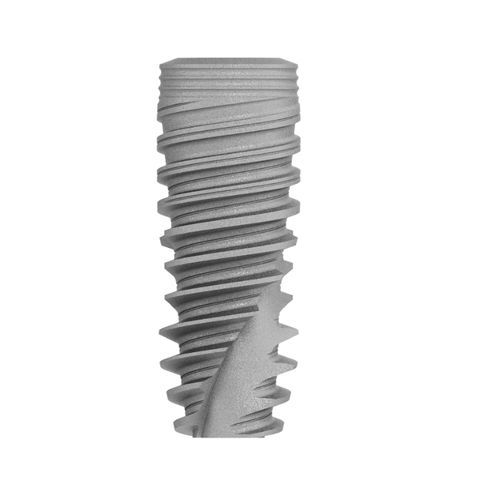

Conical dental implant 302365

titaniumstraightmulti-unit

Product description
Endosseous dental implant for placement in alveolar bone. Implant body manufactured from commercially pure titanium (grade 4) with a TiUnite anodized surface. Indicated for single-unit, multiple-unit and full-arch restorations; diameter 5.5 mm and length 15 mm suit clinical situations requiring a larger-diameter NP solution.

Series information
S-series implants use a single prosthetic connection size (Conical Connection NP) across all implant diameters, streamlining prosthetic workflows and reducing component variability.

Note
Cover screw not included; prosthetic components and healing abutments ordered separately. Follow the manufacturer’s surgical protocol for drilling sequence, insertion torque and soft-tissue management.

Technical specification (table)
Surface: TiUnite
Platform: Narrow Platform (NP)
Drill protocol: Straight
Diameter: 5.5 mm
Length: 15 mm
Material: Commercially pure titanium (grade 4)
Indication: Full-arch, Multiple-unit, Single-unit
Connection type: Internal Conical Connection

Characteristics / technical specifications

• Surface: TiUnite anodized
• Platform: Narrow Platform (NP)
• Drill protocol: Straight
• Diameter: 5.5 mm
• Length: 15 mm
• Material: Titanium (commercially pure, grade 4)
• Indications: Full-arch, Multiple-unit, Single-unit
• Connection: Internal Conical Connection
• Note: Cover screw not included
